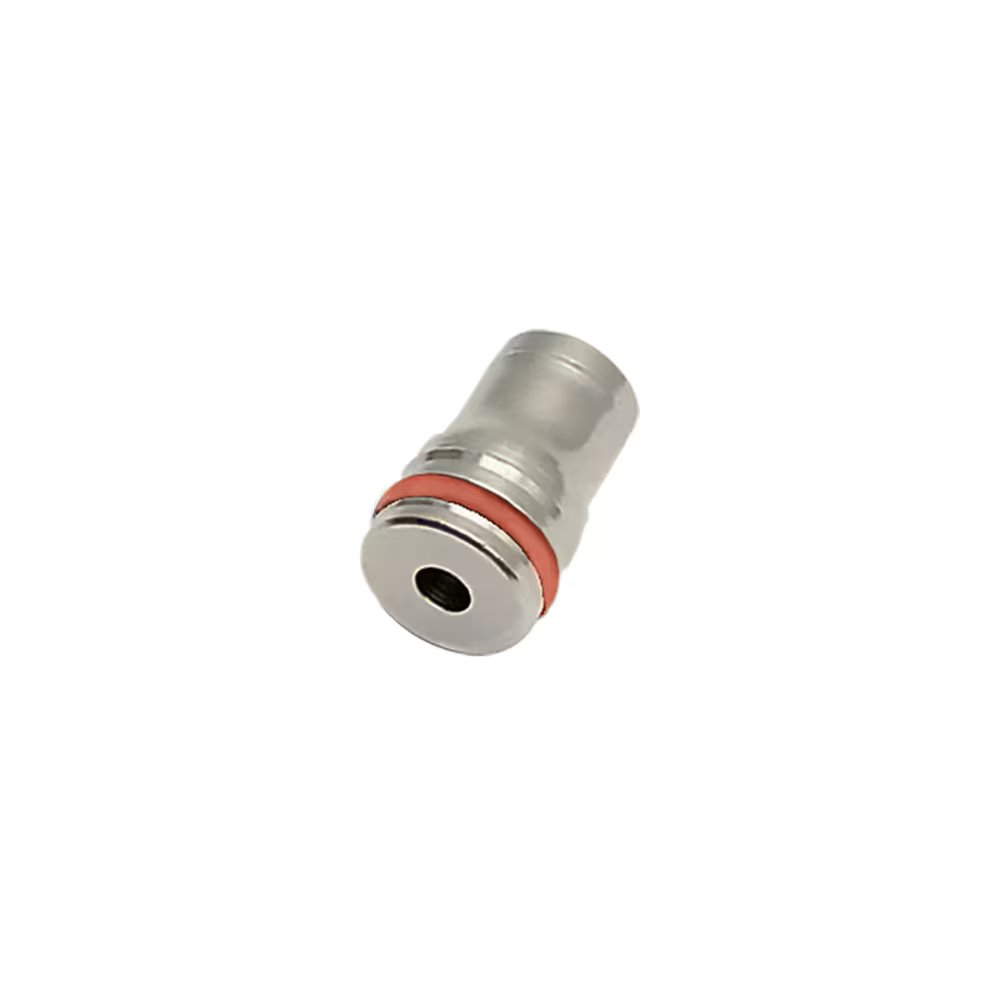

3800 10 00 by Parker | Legris Cartridge | 8 mm Tube Size | 21 mm Length | 316L Stainless Steel | Pack of 2

3800 10 00 by Parker | Legris Cartridge | 8 mm Tube Size | 21 mm Length | 316L Stainless Steel | Pack of 2

Sale price$104.57

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3800 Cartridge

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $98.30
30–59 $88.88
60+ $78.43
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3800 Series
Shape:

No Orientation

Ends Configuration:
  • 8mm Push-to-Connect
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD G G1 H H1 H2 N Kg
3800 04 00 4 mm 9.8 mm 8 mm 17 mm 8.5 mm 8.5 mm 11 mm .006 Kg
3800 06 00 6 mm 12.1 mm 10 mm 19 mm 10.5 mm 8.5 mm 13.5 mm .008 Kg
3800 08 00 8 mm 14.8 mm 13 mm 21 mm 12.5 mm 8.5 mm 16 mm .012 Kg
3800 10 00 10 mm 17.5 mm 15 mm 24.5 mm 14 mm 10.5 mm 20 mm .019 Kg
