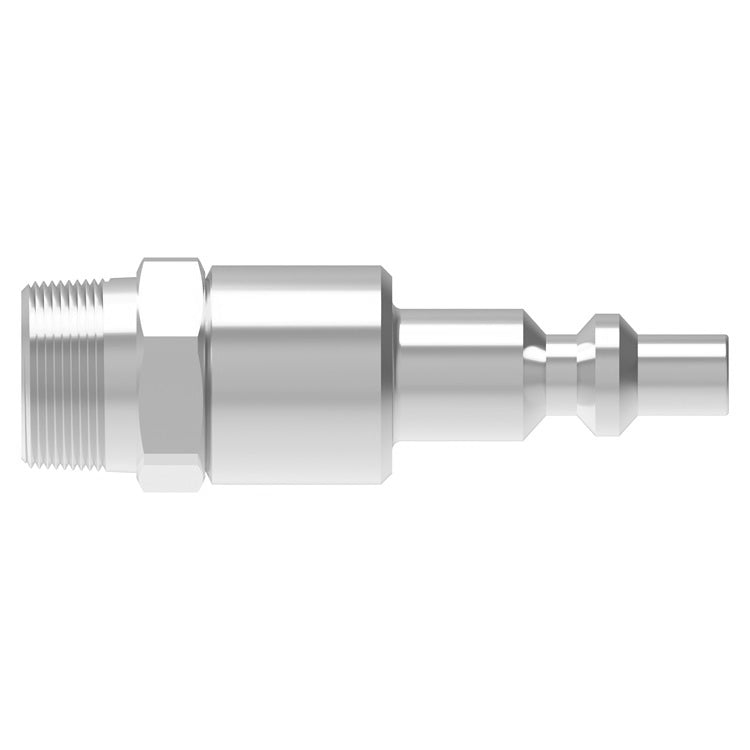

38 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series / 4000 Series | 1/8" Male NPTF x 3/8" Body Size | Plug | Steel
38 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series / 4000 Series | 1/8" Male NPTF x 3/8" Body Size | Plug | Steel
38 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series / 4000 Series | 1/8" Male NPTF x 3/8" Body Size | Plug | Steel

38 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series / 4000 Series | 1/8" Male NPTF x 3/8" Body Size | Plug | Steel

Sale price$22.08

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 400 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.

400 series accepts Tru-Flate Interchange.
Buy More, Save More!
Quantity Price Each
10–39 $20.76
40–79 $18.77
80+ $16.56
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 400 Series
  • 4000 Series
Shape:

Straight
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
400 3/8" 69 bar 1,000 psi 276 bar 4,000 psi 1,274 lpm 336 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
Plug/Male
(Figure 2A)
400 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
410 Socket/Female 3/8" 1/4" 1/4-18 Male NPTF Brass 1 2.35"
(59.69mm)		 1.13"
(28.70mm)		 0.88"
(22.35mm)
430 Socket/Female 3/8" 3/8" 3/8-18 Male NPTF Brass 1 2.35"
(59.69mm)		 1.13"
(28.70mm)		 0.88"
(22.35mm)
450 Socket/Female 3/8" 1/2" 1/2-14 Male NPTF Brass 1 2.54"
(64.52mm)		 1.13"
(28.70mm)		 0.88"
(22.35mm)
400 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
38 Plug/Male 3/8" 1/8" 1/8-27 Male NPTF Steel 2 1.72"
(43.69mm)		 0.72"
(18.29mm)		 0.63"
(16.00mm)
40 Plug/Male 3/8" 1/4" 1/4-18 Male NPTF Steel 2 1.88"
(47.75mm)		 0.72"
(18.29mm)		 0.63"
(16.00mm)
42 Plug/Male 3/8" 3/8" 3/8-18 Male NPTF Steel 2 1.88"
(47.75mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
44 Plug/Male 3/8" 1/2" 1/2-14 Male NPTF Steel 2 2.09"
(53.09mm)		 1.01"
(25.65mm)		 0.88"
(22.35mm)
B40 Plug/Male 3/8" 1/4" 1/4-18 Male NPTF Brass 2 1.88"
(47.75mm)		 0.70"
(17.78mm)		 0.63"
(16.00mm)
B42 Plug/Male 3/8" 3/8" 3/8-18 Male NPTF Brass 2 1.88"
(47.75mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
31AP25M Plug/Male 3/8" 1/4" 1/4-18 Male NPTF Steel 2A 1.85"
(46.99mm)		 0.72"
(18.29mm)		 0.63"
(16.00mm)
31AP37M Plug/Male 3/8" 3/8" 3/8-18 Male NPTF Steel 2A 1.85"
(46.99mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
