38-190627-16-16 Aeroquip by Danfoss | Male Pipe Super Gem PTFE Reusable Hose Fitting | -16 Male Pipe x -16 Reusable Hose End | Steel & Brass
AeroquipĀ® by Danfoss

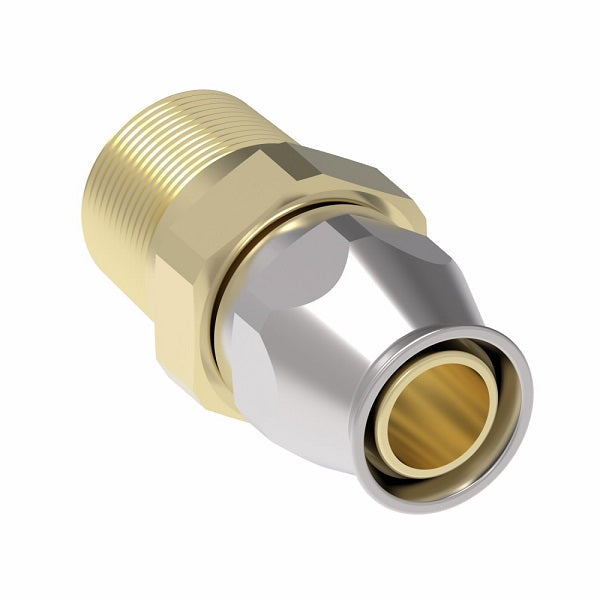

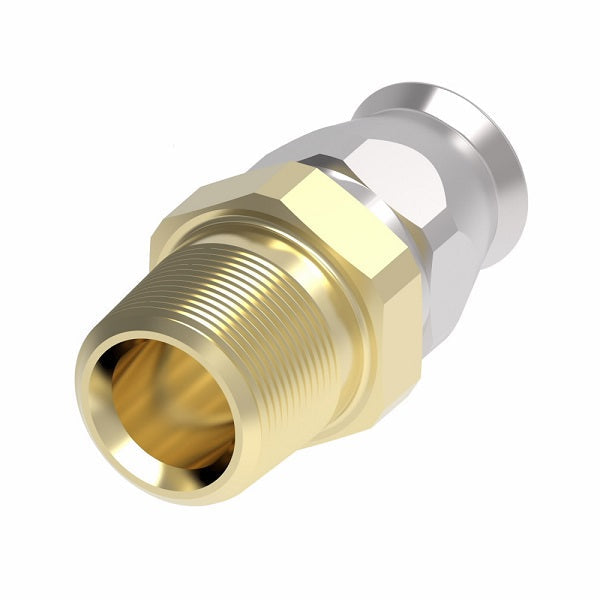

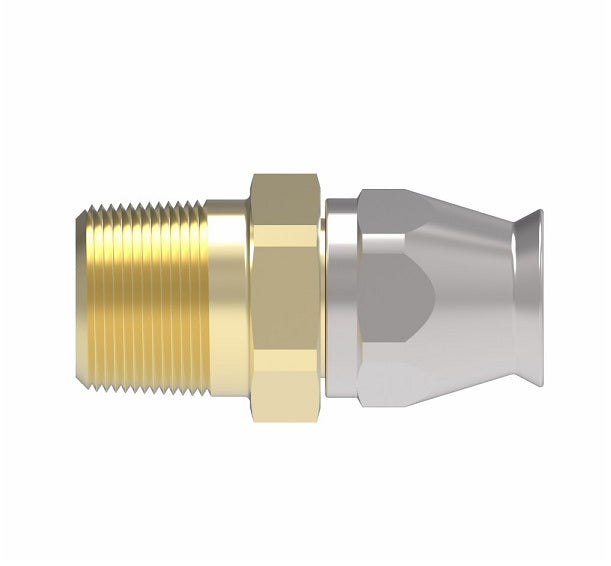

Super Gem Reusable Hose Fitting for PTFE Hose - Male Pipe - Straight
(Formerly Eaton Aeroquip)
| Quantity | Price Each |
| 10ā39 | $55.33 |
| 40ā79 | $50.03 |
| 80+ | $44.15 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel & Brass Part Number |
Stainless Steel Part Number |
Hose Size | Thread | A | D | EĆ | Sleeve Brass Part Number |
Sleeve Stainless Steel Part Number |
| 38-190627-2-4 | 190627-2-4C | -04 | 1/8-27 | 1.35" | 0.89" | 0.16" | 900568-4B | 900568-4C |
| 38-190627-4-4 | - | -04 | 1/4-18 | 1.54" | 1.08" | 0.16" | 900568-4B | 900568-4C |
| 38-190627-4-5 | - | -05 | 1/4-18 | 1.58" | 1.07" | 0.23" | 900568-5B | 900568-5C |
| 38-190627-4-6 | - | -06 | 1/4-18 | 1.66" | 1.13" | 0.28" | 900568-6B | 900568-6C |
| 38-190627-6-6 | 190627-6-6C | -06 | 3/8-18 | 1.66" | 1.13" | 0.28" | 900568-6B | 900568-6C |
| 38-190627-6-8 | - | -08 | 3/8-18 | 1.79" | 1.16" | 0.38" | 900568-8B | 900568-8C |
| - | 190627-8-8C | -08 | 1/2-14 | 2.05" | 1.41" | 0.38 | 900568-8B | 900568-8C |
| 38-190627-8-10 | 190627-8-10C | -10 | 1-1/2-14 | 2.13" | 1.46" | 0.47" | 900568-10B | 900568-10C |
| 38-190627-12-12 | 190627-12-12C | -12 | 3/4-14 | 2.26" | 1.61" | 0.59" | 900568-12B | 900568-12C |
| 38-190627-16-16 | - | -16 | 1-11-1/2 | 2.48" | 1.86" | 0.83" | 900568-16B | 900568-16C |
| 38-190627-20-20 | - | -20 | 1-1/4-11-1/2 | 2.83" | 2.17" | 1.06" | 900568-20B | - |
