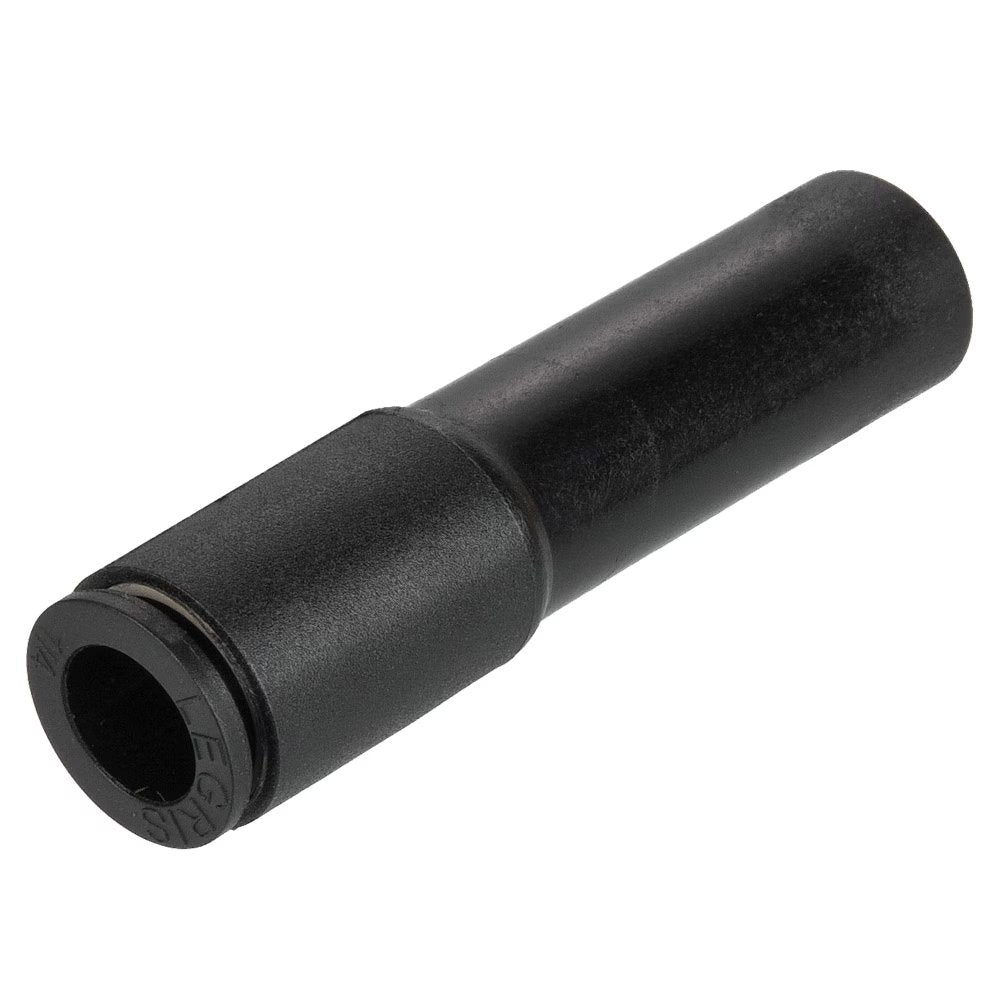

37PLP-4M-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 5/32" to 1/4" Tube Reducer | 1.48" Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:37PLP Tube Reducer
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.12 |
| 40–79 | $19.10 |
| 80+ | $16.85 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||
|---|---|---|---|---|
| Part Number | Tube Size 1 | Tube Size 2 | L | L1 |
| 37PLP-2-4M | 1/8" | 5/32" | 1.79" | 1.32" |
| 37PLP-2-3 | 1/8" | 3/16" | 1.79" | 1.14" |
| 37PLP-2-4 | 1/8" | 1/4" | 1.79" | 1.22" |
| 37PLP-4M-3 | 5/32" | 3/16" | 1.48" | .83" |
| 37PLP-4M-4 | 5/32" | 1/4" | 1.48" | .91" |
| 37PLP-4M-6 | 5/32" | 3/8" | 1.61" | .81" |
| 37PLP-3-8M | 3/16" | 5/16" | 1.79" | 1.06" |
| 37PLP-3-4 | 3/16" | 1/4" | 1.79" | 1.22" |
| 37PLP-4-8M | 1/4" | 5/16" | 1.61" | .89" |
| 37PLP-4-6 | 1/4" | 3/8" | 1.61" | .81" |
| 37PLP-4-8 | 1/4" | 1/2" | 1.97" | .98" |
| 37PLP-8M-6 | 5/16" | 3/8" | 1.93" | 1.12" |
| 37PLP-8M-8 | 5/16" | 1/2" | 2.01" | 1.02 |
| 37PLP-6-8 | 3/8" | 1/2" | 2.01" | 1.04" |
