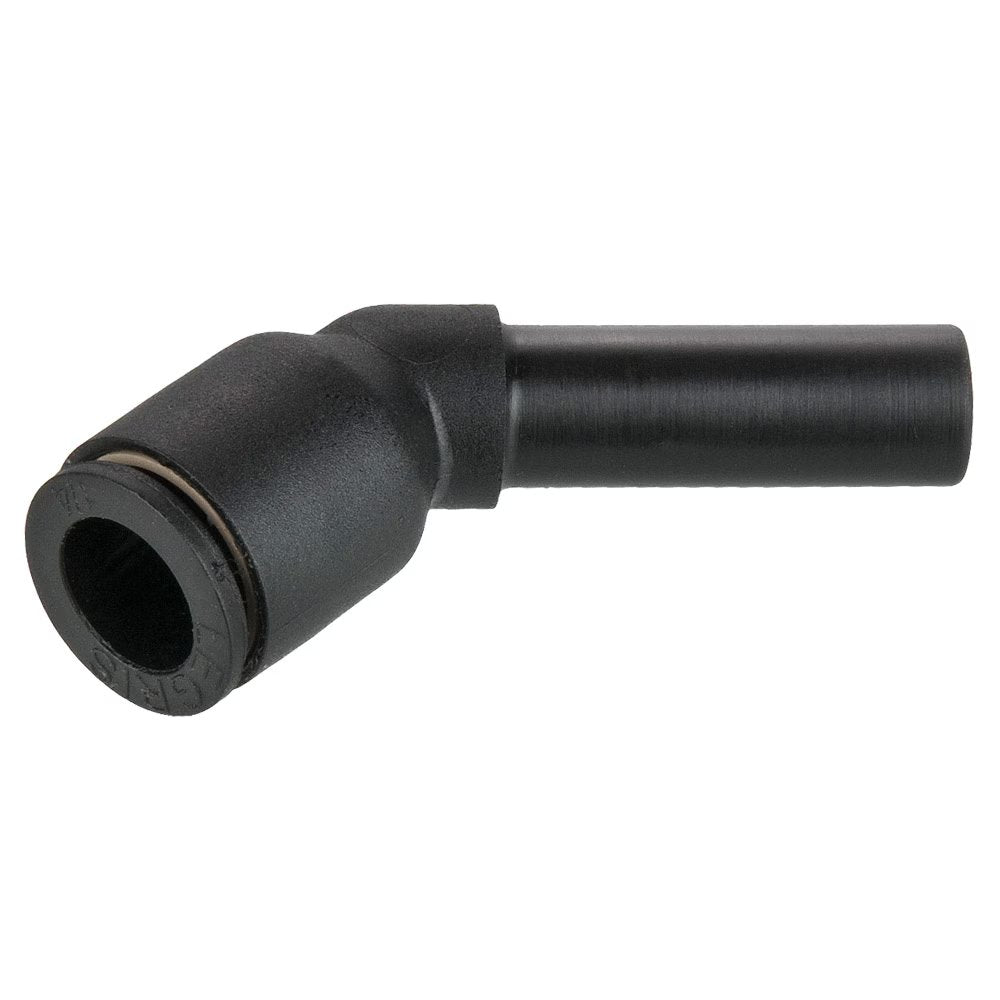

379PLPSP-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 10mm Tube Size | 53.0mm Height (H) | 45° Elbow | Glass-Reinforced Nylon | Pack of 10

379PLPSP-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 10mm Tube Size | 53.0mm Height (H) | 45° Elbow | Glass-Reinforced Nylon | Pack of 10

Sale price$45.67

by Parker Hannifin
Push-to-Connect Fittings:379PLPSP 45° Plug-In Elbow

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $42.93
40–79 $38.82
80+ $34.25
Discounts applied in cart/checkout.

Product Data:

Series:
  • 379PLPSP Series
Shape:

45° Elbow

Ends Configuration:
  • 10mm Push-to-Connect
  • 10mm Tube Stem
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 H H1 H2 L
379PLPSP-4M 4 mm 4 mm 33.5 mm 19.0 mm 21.0 mm 13.0 mm
379PLPSP-6M 6 mm 6 mm 39.0 mm 21.0 mm 25.0 14.5 mm
379PLPSP-8M 8 mm 8 mm 44.0 mm 21.5 mm 25.5 mm 19.5 mm
379PLPSP-10M 10 mm 10 mm 53.0 mm 27.0 mm 32.5 mm 23.0 mm
379PLPSP-12M 12 mm 12 mm 58.5 mm 27.5 mm 34.0 mm 26.5 mm
