375XSJ48NCS by Flexco | #40040 | 375X Bolt Hinged Fastener | 48" Belt Width | Stainless Steel Joint with Nylon Covered Stainless Steel Cable

Sturdy hinged construction makes Flexco&reg Bolt Hinged fasteners ideal. A choice of sizes accommodate belts from 1/4" (6 mm) to 5/8" (16 mm) thick.

For belt conveyor applications subject to frequent length adjustments, the Bolt Hinged fastener is easy to install - and re-install. The joint can be separated simply by removing the hinge pin.

On-site installation requires hand or power tools. Our exclusive piloted bolt also simplifies installation and holds fastener plates firmly in place. For added strength and pull-out resistance, specially formed teeth penetrate deep into the belt carcass without damaging carcass fibers.

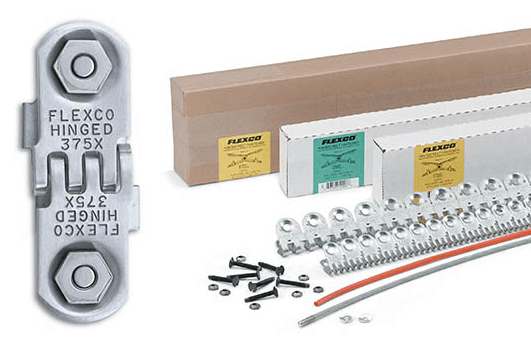

Each "J" Carton Contains:
2 Fastener Strips 1 Gauge Pin 1 Hinge Pin 2 Hinge Pin Washers Filler Tubing Required Piloted Bolts, Nuts, and Clips
Applications:
Construction and Road Equipment, Coal, Salt, Potash, Grain, Wood Products, Recycling
Features:
Exclusive tapered tip cradles nuts securely in place. Reduces installation time.

Please use this chart to select which fastener you need
Fastener Size	Belt Thickness Range		For Belts with Mechanical Fastener Ratings Up To:		Recommended Minimum Pulley Diameter (Operating Tension 75%-100% of Belt Rating)
	in	mm	P.I.W.	kN/m	in	mm
375X	1/4" - 13/32"	6mm - 11mm	190	33	6"	150mm
550	1/4" - 5/8"	6mm - 16mm	300	52	9"	225mm

Part Number	Belt Width
375XSJ18NCS	18"
375XSJ24NCS	24"
375XSJ30NCS	30"
375XSJ36NCS	36"
375XSJ42NCS	42"
375XSJ48NCS	48"
