375XSJ30SSC Flexco 375X Bolt Hinged Fastener - STAINLESS STEEL Joint with Bare STAINLESS STEEL Cable - 40226 - 30" Belt Width

375XSJ30SSC by Flexco | #40226 | 375X Bolt Hinged Fastener | 30" Belt Width | Stainless Steel Joint with Bare Stainless Steel Cable

Sale price$515.78
Flexco Bolt Hinged Fastener System - Fasteners - 375X Series - Stainless Steel Joint with Bare Stainless Steel Cable
FREE SHIPPING DOMESTICALLY!
Quantity Price Each
5–14 $489.99
15–29 $464.20
30+ $412.62
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Stainless Steel
Applicable Belt Thickness:
  • 1/4in to 13/32in
Applicable Belt Width:

30in
Sturdy hinged construction makes Flexco&reg Bolt Hinged fasteners ideal. A choice of sizes accommodate belts from 1/4" (6 mm) to 5/8" (16 mm) thick.

For belt conveyor applications subject to frequent length adjustments, the Bolt Hinged fastener is easy to install - and re-install. The joint can be separated simply by removing the hinge pin.

On-site installation requires hand or power tools. Our exclusive piloted bolt also simplifies installation and holds fastener plates firmly in place. For added strength and pull-out resistance, specially formed teeth penetrate deep into the belt carcass without damaging carcass fibers.

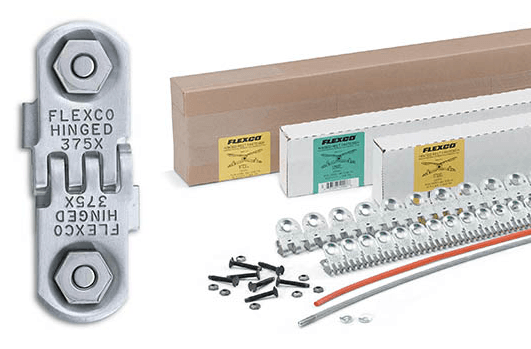

Each "J" Carton Contains:
  • 2 Fastener Strips
  • 1 Gauge Pin
  • 1 Hinge Pin
  • 2 Hinge Pin Washers
  • Filler Tubing
  • Required Piloted Bolts, Nuts, and Clips
Applications:
  • Construction and Road Equipment, Coal, Salt, Potash, Grain, Wood Products, Recycling
Features:
  • Exclusive tapered tip cradles nuts securely in place.
  • Reduces installation time.


Please use this chart to select which fastener you need
Fastener Size Belt Thickness Range For Belts with
Mechanical Fastener
Ratings Up To:		 Recommended Minimum
Pulley Diameter
(Operating Tension
75%-100% of Belt Rating)
in mm P.I.W. kN/m in mm
375X 1/4" - 13/32" 6mm - 11mm 190 33 6" 150mm
550 1/4" - 5/8" 6mm - 16mm 300 52 9" 225mm


Part Number Belt Width
375XSJ24SSC 24"
375XSJ30SSC 30"
375XSJ36SSC 36"
375XSJ42SSC 42"
375XSJ48SSC 48"
375XSJ60SSC 60"
