375XJ42NCS Flexco 375X Bolt Hinged Fastener - STEEL Joint with Nylon Covered STAINLESS STEEL Cable - 40016 - 42" Belt Width

375XJ42NCS by Flexco | #40016 | 375X Bolt Hinged Fastener | 42" Belt Width | Steel Joint with Nylon Covered Stainless Steel Cable

Sale price$248.61
Flexco Bolt Hinged Fastener System - Fasteners - 375X Series - Steel Joint with Nylon Covered Stainless Steel Cable
FREE SHIPPING DOMESTICALLY!
Buy More, Save More!
Quantity Price Each
5–19 $233.69
20–59 $211.32
60+ $186.46
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Steel
Applicable Belt Thickness:
  • 1/4in to 13/32in
Applicable Belt Width:

42in
Sturdy hinged construction makes Flexco&reg Bolt Hinged fasteners ideal. A choice of sizes accommodate belts from 1/4" (6 mm) to 5/8" (16 mm) thick.

For belt conveyor applications subject to frequent length adjustments, the Bolt Hinged fastener is easy to install - and re-install. The joint can be separated simply by removing the hinge pin.

On-site installation requires hand or power tools. Our exclusive piloted bolt also simplifies installation and holds fastener plates firmly in place. For added strength and pull-out resistance, specially formed teeth penetrate deep into the belt carcass without damaging carcass fibers.

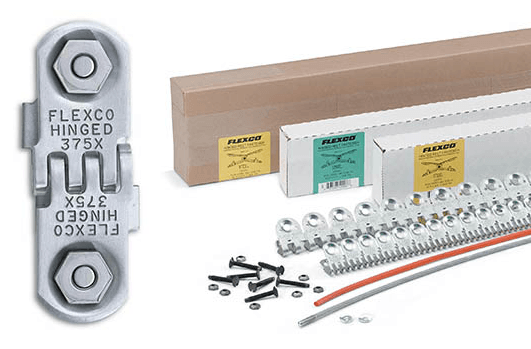

Each "J" Carton Contains:
  • 2 Fastener Strips
  • 1 Gauge Pin
  • 1 Hinge Pin
  • 2 Hinge Pin Washers
  • Filler Tubing
  • Required Piloted Bolts, Nuts, and Clips
Applications:
  • Construction and Road Equipment, Coal, Salt, Potash, Grain, Wood Products, Recycling
Features:
  • Exclusive tapered tip cradles nuts securely in place.
  • Reduces installation time.


Please use this chart to select which fastener you need
Fastener Size Belt Thickness Range For Belts with
Mechanical Fastener
Ratings Up To:		 Recommended Minimum
Pulley Diameter
(Operating Tension
75%-100% of Belt Rating)
in mm P.I.W. kN/m in mm
375X 1/4" - 13/32" 6mm - 11mm 190 33 6" 150mm
550 1/4" - 5/8" 6mm - 16mm 300 52 9" 225mm


Part Number Belt Width
375XJ18NCS 18"
375XJ24NCS 24"
375XJ30NCS 30"
375XJ36NCS 36"
375XJ42NCS 42"
375XJ48NCS 48"
