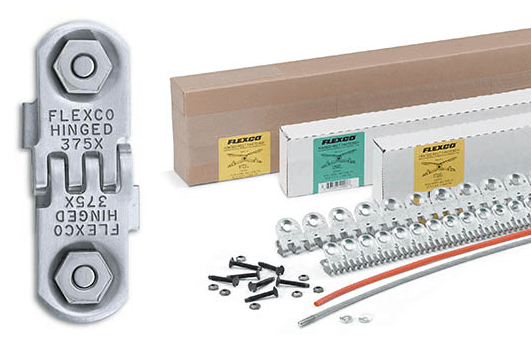

375XJ12NC by Flexco | #40000 | 375X Bolt Hinged Fastener | 12" Belt Width | Steel Joint with Nylon Covered Steel Cable

Sturdy hinged construction makes Flexco&reg Bolt Hinged fasteners ideal. A choice of sizes accommodate belts from 1/4" (6 mm) to 5/8" (16 mm) thick.

For belt conveyor applications subject to frequent length adjustments, the Bolt Hinged fastener is easy to install - and re-install. The joint can be separated simply by removing the hinge pin.

On-site installation requires hand or power tools. Our exclusive piloted bolt also simplifies installation and holds fastener plates firmly in place. For added strength and pull-out resistance, specially formed teeth penetrate deep into the belt carcass without damaging carcass fibers.

Each "J" Carton Contains:
2 Fastener Strips 1 Gauge Pin 1 Hinge Pin 2 Hinge Pin Washers Filler Tubing Required Piloted Bolts, Nuts, and Clips
Applications:
Construction and Road Equipment, Coal, Salt, Potash, Grain, Wood Products, Recycling
Features:
Exclusive tapered tip cradles nuts securely in place. Reduces installation time.

Please use this chart to select which fastener you need
Fastener Size	Belt Thickness Range		For Belts with Mechanical Fastener Ratings Up To:		Recommended Minimum Pulley Diameter (Operating Tension 75%-100% of Belt Rating)
	in	mm	P.I.W.	kN/m	in	mm
375X	1/4" - 13/32"	6mm - 11mm	190	33	6"	150mm
550	1/4" - 5/8"	6mm - 16mm	300	52	9"	225mm

Part Number	Belt Width
375XJ12NC	12"
375XJ14NC	14"
375XJ16NC	16"
375XJ18NC	18"
375XJ20NC	20"
375XJ24NC	24"
375XJ26NC	26"
375XJ30NC	30"
375XJ36NC	36"
375XJ42NC	42"
375XJ48NC	48"
375XJ60NC	60"
