375X-72 by Flexco | #30826 | 375X Bolt Hinged Fastener Curved Template | 72" Belt Width

Sturdy hinged construction makes Flexco&reg Bolt Hinged fasteners ideal. A choice of sizes accommodate belts from 1/4" (6 mm) to 5/8" (16 mm) thick.

For belt conveyor applications subject to frequent length adjustments, the Bolt Hinged fastener is easy to install - and re-install. The joint can be separated simply by removing the hinge pin.

On-site installation requires hand or power tools. Our exclusive piloted bolt also simplifies installation and holds fastener plates firmly in place. For added strength and pull-out resistance, specially formed teeth penetrate deep into the belt carcass without damaging carcass fibers.

Applications:
Construction and Road Equipment, Coal, Salt, Potash, Grain, Wood Products, Recycling
Features:

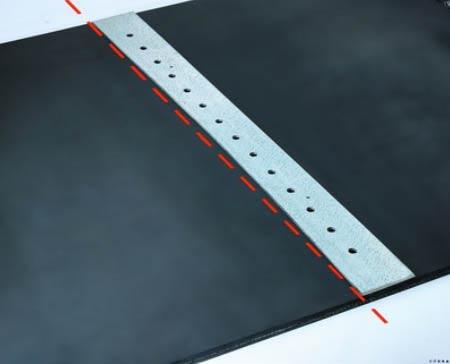

Our specially designed curved templet ensures accurate placement of punched or drilled holes. Using the templet also ensures a precise concave cut to provide uniform tension across full belt end and minimize the potential for splice edge failure.

Part Number	Belt Width
375X-12	12"
375X-14	14"
375X-16	16"
375X-18	18"
375X-20	20"
375X-24	24"
375X-26	26"
375X-30	30"
375X-36	36"
375X-42	42"
375X-48	48"
375X-54	54"
375X-60	60"
375X-72	72"
