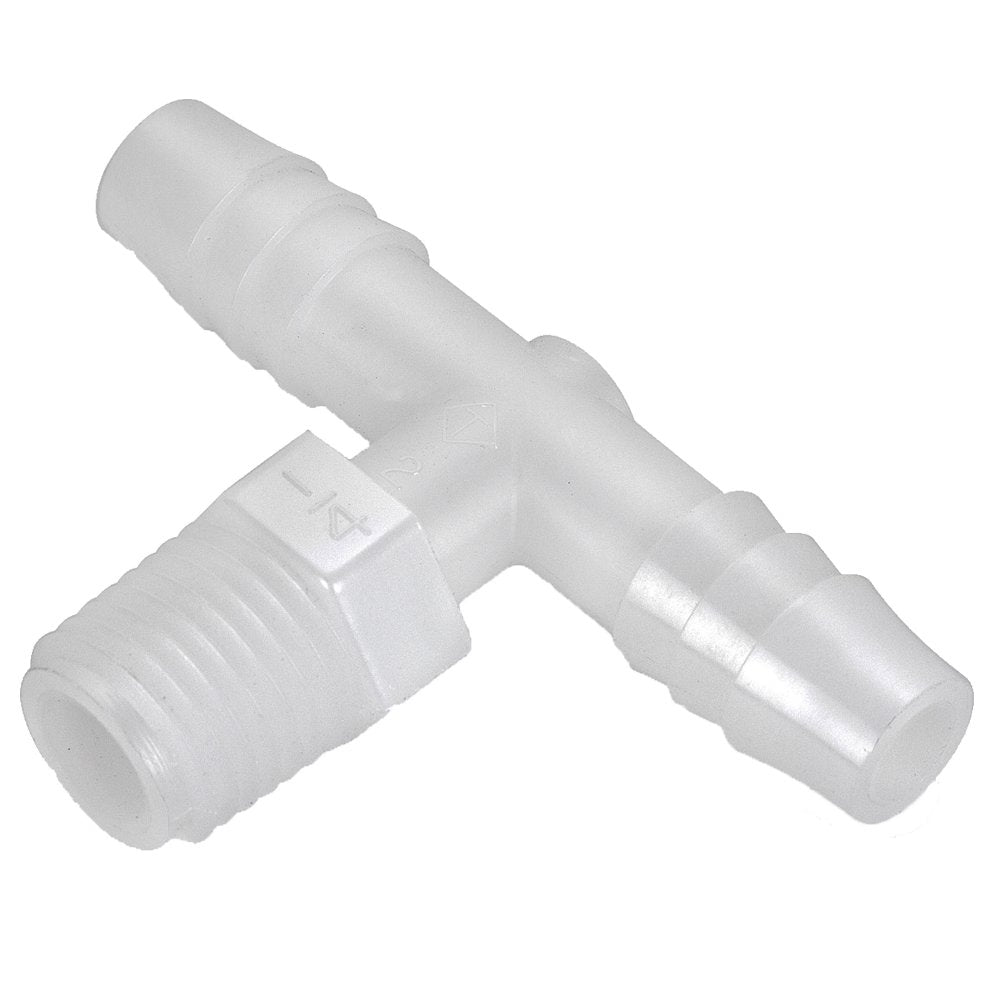

372HB-4-2N by Parker | Threaded Fitting | 1/4" Barb x 1/8" Male NPT Pipe Thread | 7/16" Hex | 1.92" Length | Tee | White | Nylon
Minimum Order Quantity: 10 units
by Parker Hannifin
Par-Barb® Fittings:Male Branch Tee 372HB
Product Data:
Brand:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | Up to 125 PSI (8.6 bar) |
| Temperature Range: | Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C) |
| Compatible Tubing: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| White Nylon Part Number | Black Polypropylene Part Number | Tube Or Hose ID | NPT Pipe Thread | OD | Hex (C) | L | N | Flow Diameter (D) |
| 372HB-3-2N | - | 3/16" | 1/8" | .25" | 7/16" | 1.94" | 1.06" | .13" |
| 372HB-3-4N | - | 3/16" | 1/4" | .24" | 9/16" | 1.93" | 1.17" | .13" |
| 372HB-4-2N | 372HB-4-2PP | 1/4" | 1/8" | .32" | 7/16" | 1.92" | 1.06" | .16" |
| 372HB-4-4N | 372HB-4-4PP | 1/4" | 1/4" | .32" | 9/16" | 1.94" | 1.16" | .16" |
| - | 372HB-4-6PP | 1/4" | 3/8" | .32" | 11/16" | 1.92" | 1.18" | .16" |
| 372HB-6-4N | 372HB-6-4PP | 3/8" | 1/4" | .43" | 9/16" | 2.22" | 1.06" | .13" |
| - | 372HB-6-6PP | 3/8" | 3/8" | .43" | 11/16" | 2.22" | 1.17" | .25" |
| 372HB-6-8N | 372HB-6-8PP | 3/8" | 1/2" | .43" | 7/8" | 2.22" | 1.29" | .25" |
| 372HB-8-4N | 372HB-8-4PP | 1/2" | 1/4" | .55" | 9/16" | 2.52" | 1.17" | .37" |
| 372HB-8-6N | 372HB-8-6PP | 1/2" | 3/8" | .56" | 11/16" | 2.52" | 1.17" | .37" |
| 372HB-8-8N | 372HB-8-8PP | 1/2" | 1/2" | .55" | 7/8" | 2.52" | 1.30" | .37" |
| 372HB-12-12N | 372HB-12-12PP | 3/4" | 3/4" | .81" | 1-1/8" | 2.97" | 1.92" | .58" |
