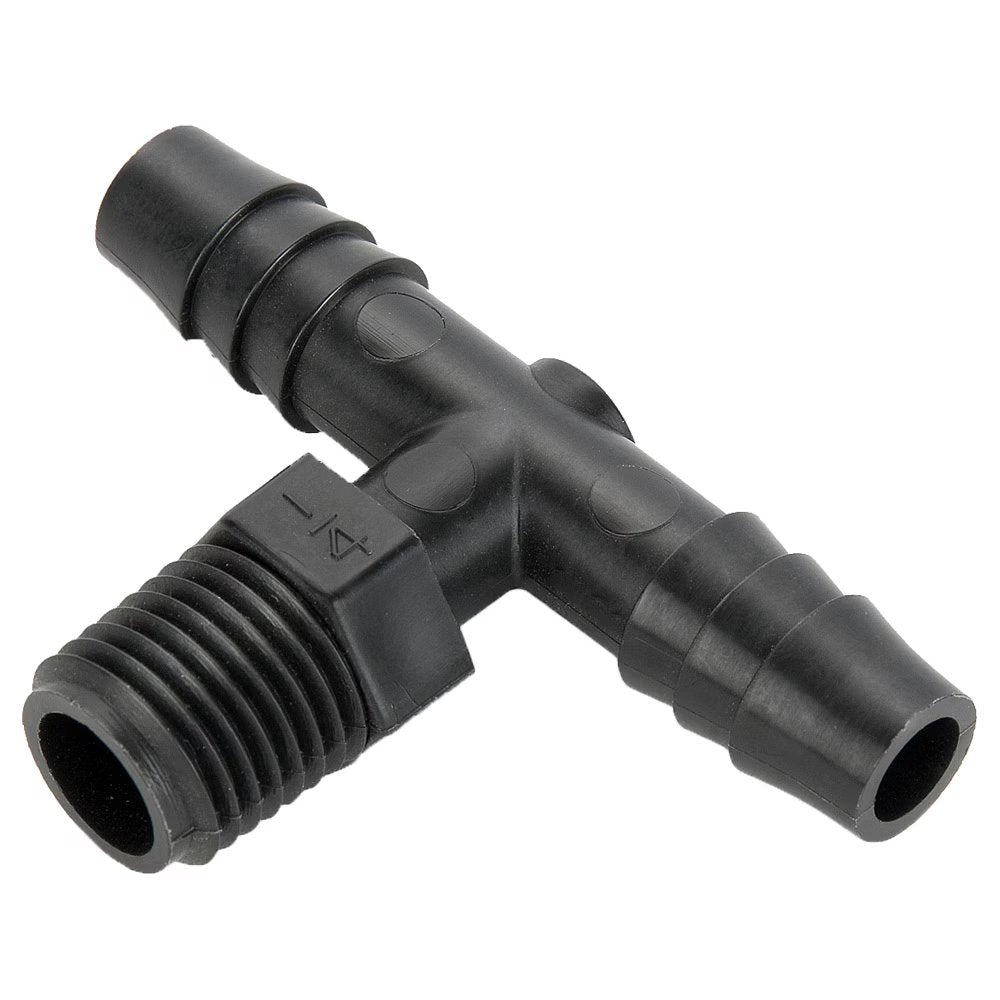

372HB-6-4PP by Parker | Threaded Fitting | 3/8" Barb x 1/4" Male NPT Pipe Thread | 9/16" Hex | 2.22" Length | Tee | Black | Polypropylene

372HB-6-4PP by Parker | Threaded Fitting | 3/8" Barb x 1/4" Male NPT Pipe Thread | 9/16" Hex | 2.22" Length | Tee | Black | Polypropylene

Sale price$1.08

by Parker Hannifin
Par-Barb® Fittings:Male Branch Tee 372HB
Buy More, Save More!
Quantity Price Each
20–39 $1.02
40–79 $0.92
80+ $0.81
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Par-Barb®
Series:
  • 372HB Series
Shape:

Tee
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number Tube Or Hose ID NPT Pipe Thread OD Hex (C) L N Flow Diameter (D)
372HB-3-2N - 3/16" 1/8" .25" 7/16" 1.94" 1.06" .13"
372HB-3-4N - 3/16" 1/4" .24" 9/16" 1.93" 1.17" .13"
372HB-4-2N 372HB-4-2PP 1/4" 1/8" .32" 7/16" 1.92" 1.06" .16"
372HB-4-4N 372HB-4-4PP 1/4" 1/4" .32" 9/16" 1.94" 1.16" .16"
- 372HB-4-6PP 1/4" 3/8" .32" 11/16" 1.92" 1.18" .16"
372HB-6-4N 372HB-6-4PP 3/8" 1/4" .43" 9/16" 2.22" 1.06" .13"
- 372HB-6-6PP 3/8" 3/8" .43" 11/16" 2.22" 1.17" .25"
372HB-6-8N 372HB-6-8PP 3/8" 1/2" .43" 7/8" 2.22" 1.29" .25"
372HB-8-4N 372HB-8-4PP 1/2" 1/4" .55" 9/16" 2.52" 1.17" .37"
372HB-8-6N 372HB-8-6PP 1/2" 3/8" .56" 11/16" 2.52" 1.17" .37"
372HB-8-8N 372HB-8-8PP 1/2" 1/2" .55" 7/8" 2.52" 1.30" .37"
372HB-12-12N 372HB-12-12PP 3/4" 3/4" .81" 1-1/8" 2.97" 1.92" .58"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
