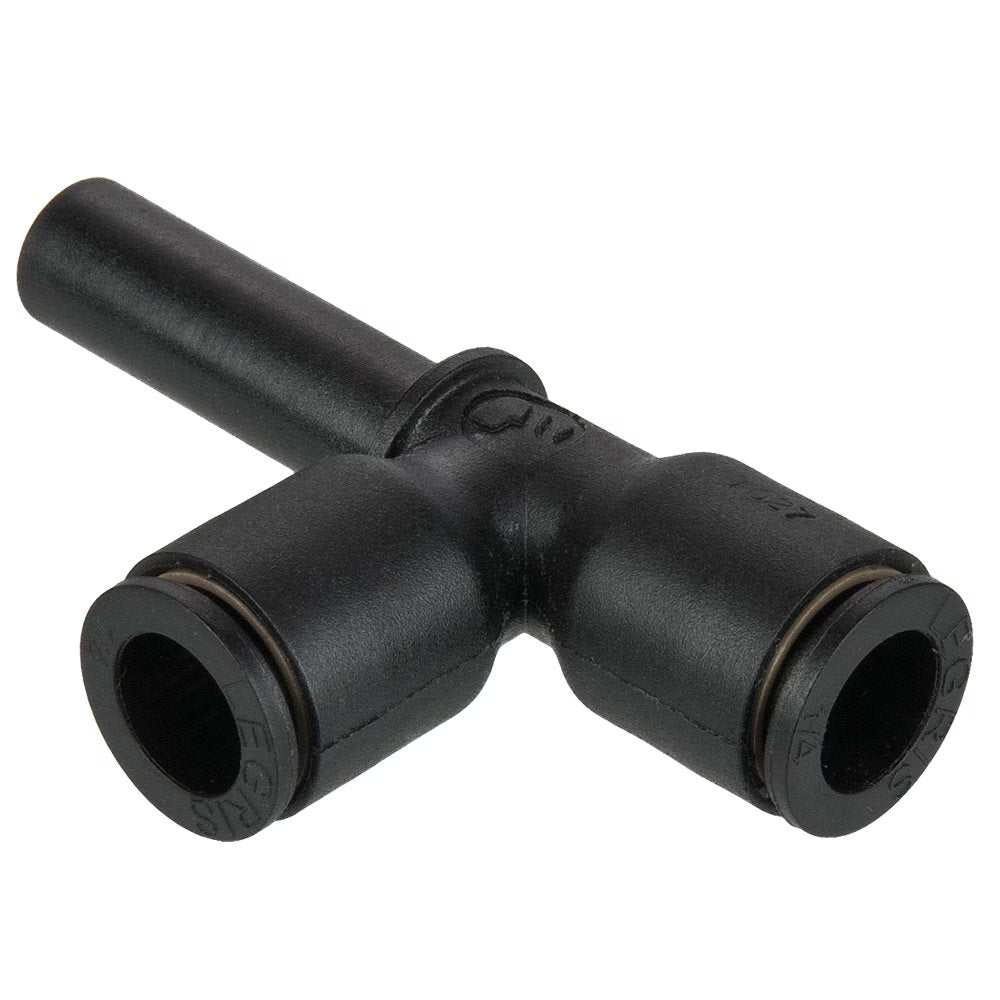

371PLPSP-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/4" Tube Size | 1.69" Height (H) | Tee | Glass-Reinforced Nylon | Pack of 10
Minimum Order Quantity: 5 Units
by Parker Hannifin
Push-to-Connect Fittings:371PLPSP Plug-In Run Tee
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $40.31 |
| 40–79 | $36.45 |
| 80+ | $32.16 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size 1 | Tube Size 2 | H | H1 | H2 | L |
| 371PLPSP-4 | 1/4" | 1/4" | 1.69" | .43" | .83" | .73" |
| 371PLPSP-6 | 3/8" | 3/8" | 2.23" | .33" | .96" | 1.00" |
| 371PLPSP-8 | 1/2" | 1/2" | 2.86" | .51" | 1.12" | 1.38" |
