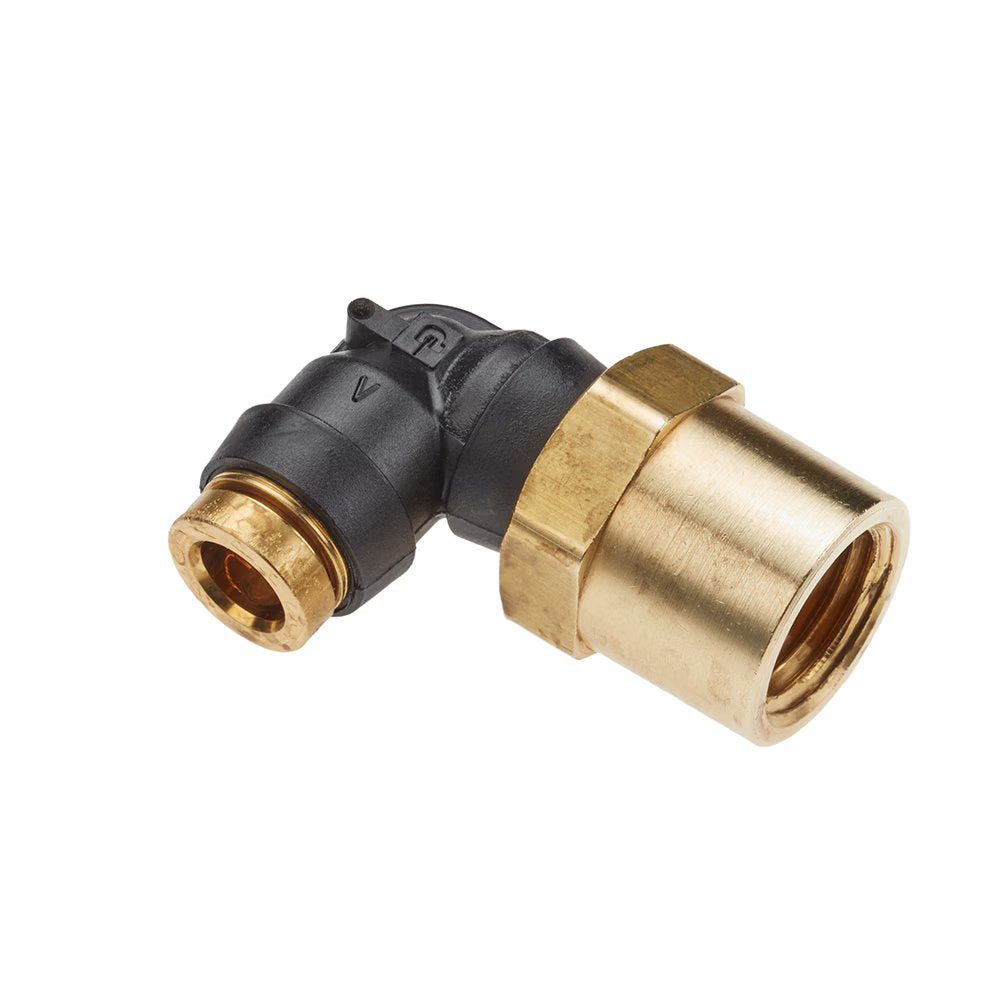

370PTCR-6-6 by Parker | Threaded Fitting | 3/8" Rigid Swivel Push-to-Connect x 3/8" Female NPTF Pipe Thread | 90° Elbow | Composite | Pack of 5
by Parker Hannifin
PTC & PTCR Composite Fittings:Female Elbow Swivel 90° 370PTCR
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $70.23 |
| 40–79 | $63.50 |
| 80+ | $56.03 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | 15 to 145 psi (1.0 to 9.9 bar) |
| Temperature Range: | +32° to +158° F (0 to +70° C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | Hex (B) | L | M |
| 370PTCR-4-2 | 1/4" | 1/8" | 9/16" | .74" | .94" |
| 370PTCR-4-4 | 1/4" | 1/4" | 11/16" | .74" | 1.20" |
| 370PTCR-6-2 | 3/8" | 1/8" | 3/4" | 1.01" | .75" |
| 370PTCR-6-4 | 3/8" | 1/4" | 3/4" | 1.01" | 1.04" |
| 370PTCR-6-6 | 3/8" | 3/8" | 3/4" | 1.01" | 1.19" |
| 370PTCR-8-6 | 1/2" | 3/8" | 3/4" | 1.13" | 1.24" |
| 370PTCR-8-8 | 1/2" | 1/2" | 15/16" | 1.13" | 1.49" |
