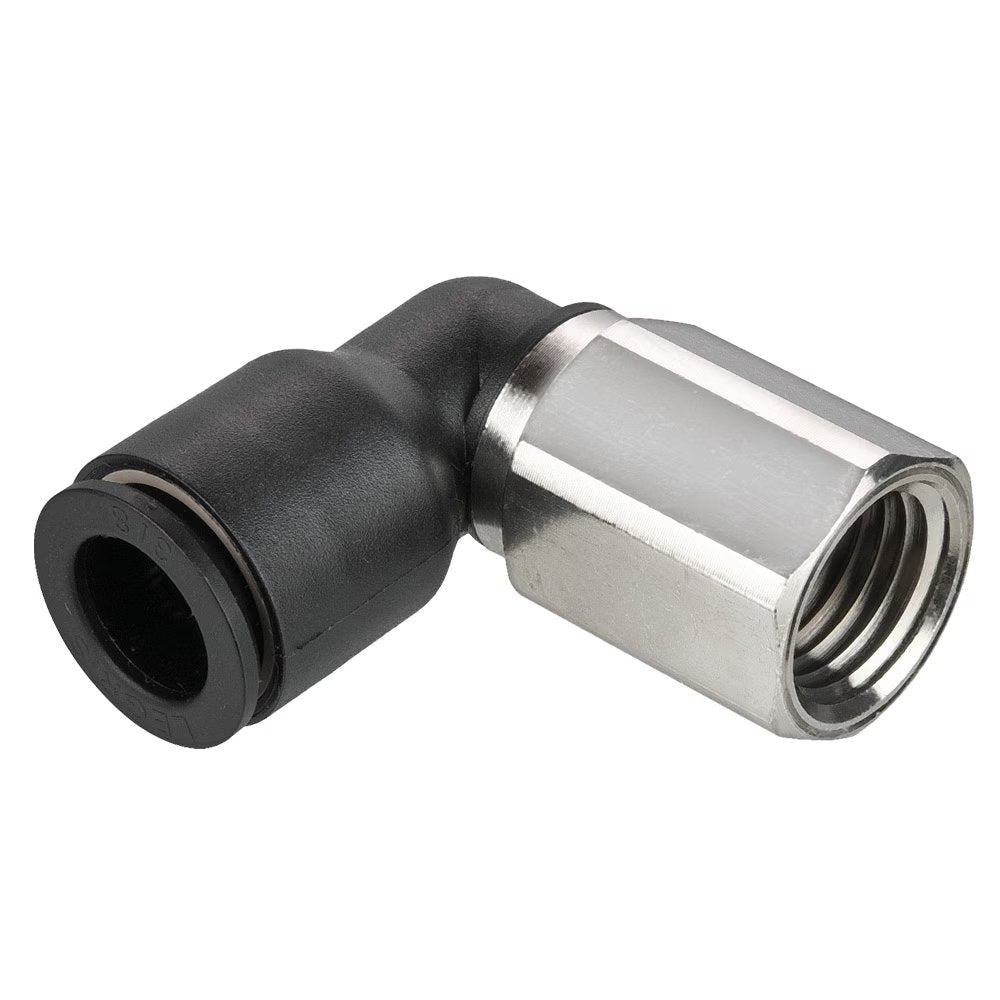

370PLP-4-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 1/4" Swivel x 1/4" Female NPT Thread | 16mm Hex | .71" Length (L) | 90° Elbow | Glass-Reinforced Nylon | Pack of 10
Minimum Order Quantity: 5 units
| Quantity | Price Each |
| 50–99 | $438.90 |
| 100+ | $390.14 |
Discounts applied at checkout.
by Parker Hannifin
Push-to-Connect Fittings:370PLP Female Elbow Swivel - NPT
Package Quantity: 10 Units
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread NPT | Hex (C) | L | H |
| 370PLP-2-2 | 1/8" | 1/8" | 13 mm | .57" | .91" |
| 370PLP-4M-2 | 5/32" | 1/8" | 13 mm | .55" | .91" |
| 370PLP-4M-4 | 5/32" | 1/4" | 16 mm | .55" | 1.08" |
| 370PLP-4-2 | 1/4" | 1/8" | 13 mm | .71" | 1.02" |
| 370PLP-4-4 | 1/4" | 1/4" | 16 mm | .71" | 1.18" |
| 370PLP-8M-2 | 5/16" | 1/8" | 13 mm | .91" | 1.12" |
| 370PLP-8M-4 | 5/16" | 1/4" | 16 mm | .91" | 1.28" |
| 370PLP-6-2 | 3/8" | 1/8" | 16 mm | 1.04" | 1.52" |
| 370PLP-6-4 | 3/8" | 1/4" | 16 mm | 1.04" | 1.52" |
| 370PLP-8-6 | 1/2" | 3/8" | 22 mm | 1.38" | 1.88" |
