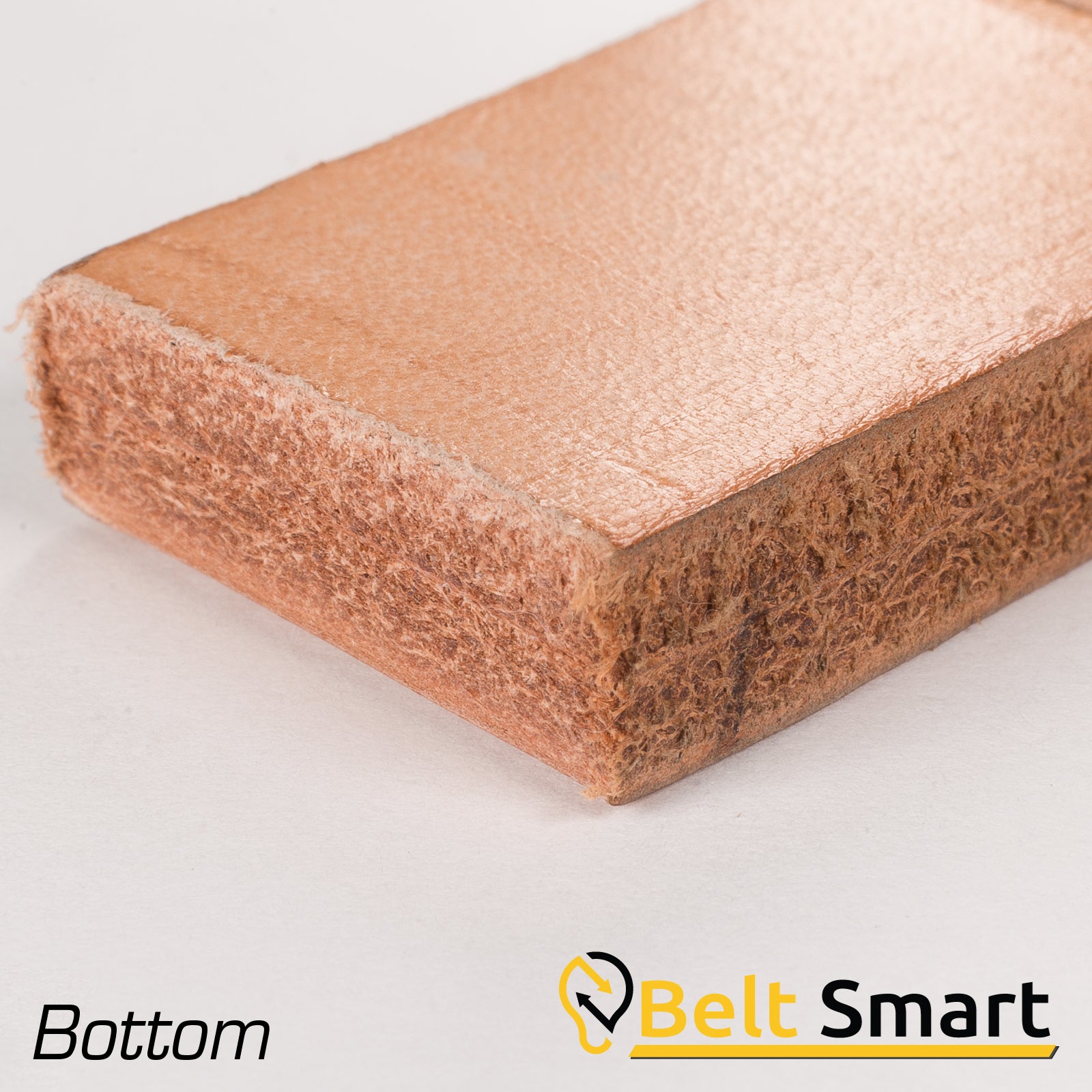

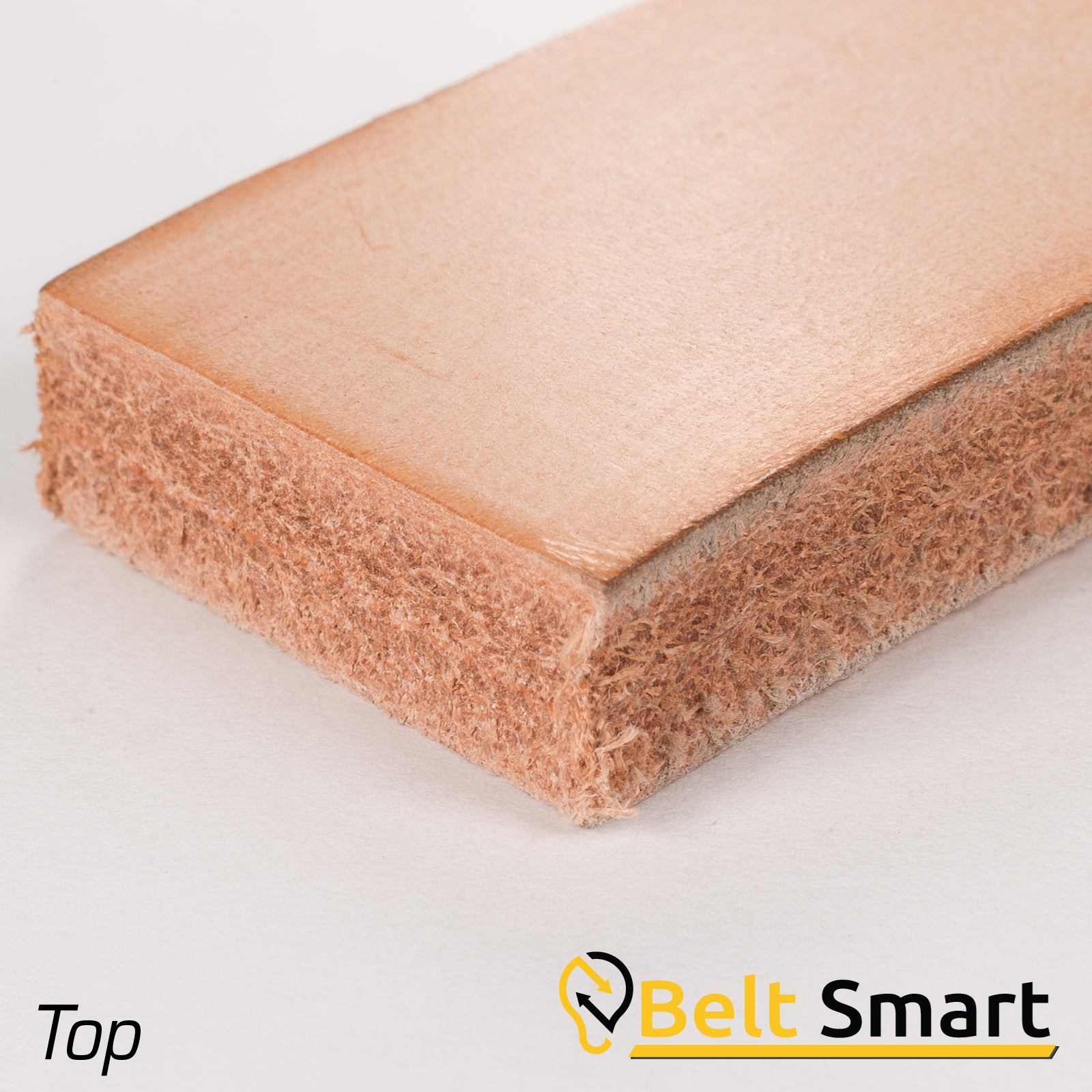

BS037 - #37 Beltservice Double Leather Transmission Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Transmission Belting
Features:
Leather is preferred for many applications because of its combined characteristics of high tensile strength, high coefficient of friction and great flexibility. Leather is very durable and usually outlasts plied rubber belting.

	Single Leather Pt No.: 36	Double Leather Pt No.: 37
Thickness	Med - 5/32" Heavy - 3/16"	Light - 1/4" Med - 5/16" Heavy - 3/8"
Approx. Horsepower @ 100 FPM @ 180 deg. Arc of Contact	Med - 1.8 Heavy - 2.1	Light - 2.6 Med - 3.1 Heavy - 3.6
Approx. Weight Lbs. Per Inch Width	Med - .065 lbs. Heavy - .070 lbs.	Light - .120 lbs. Med - .130 lbs. Heavy - .140 lbs.
Min. Pulley Diameter	Med - 2-1/2" Heavy - 4"	Light - 5" Med - 7" Heavy - 11"
Clipper Lace	Med - #2 Heavy - #3	Light - #4 1/2 Med - #6 Heavy - #7
Alligator Lace	Med - #20 Heavy - #25	Light - #27 Med - #45 Heavy - #55
