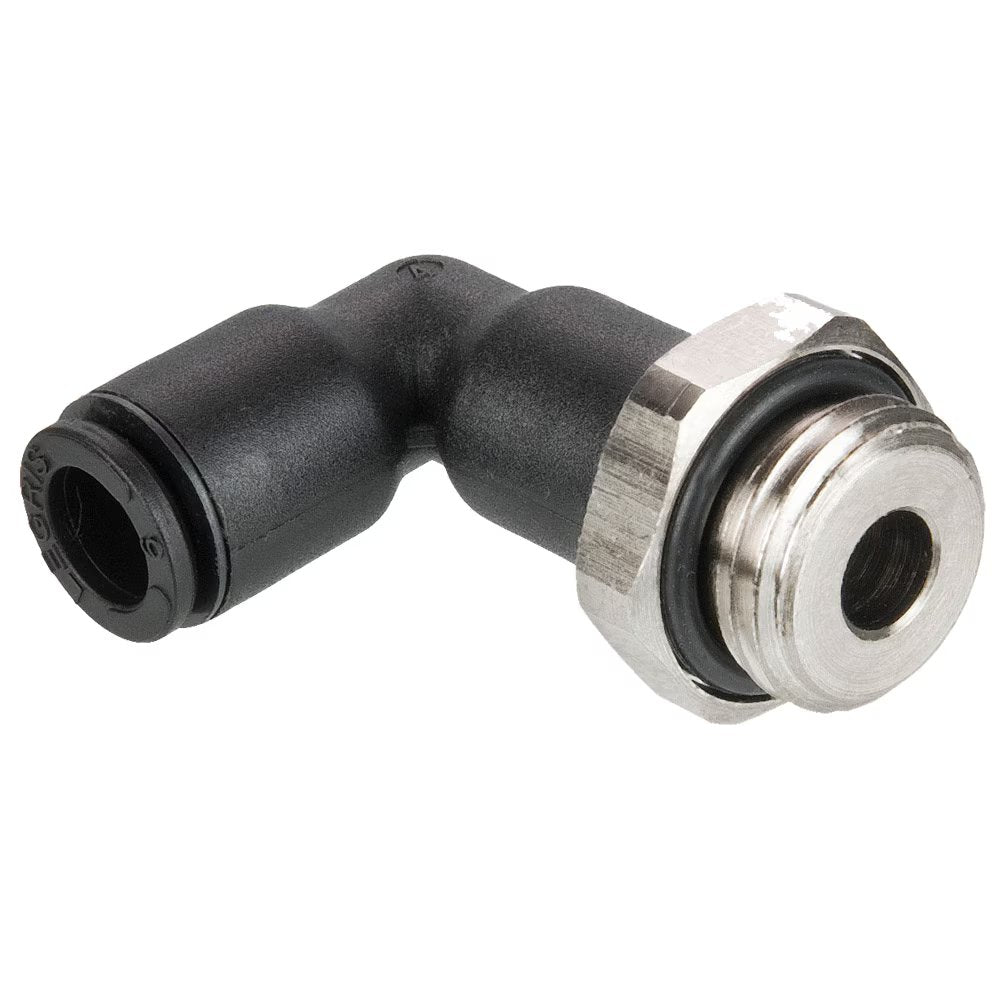

369PLPX-4M-2G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 4mm Extended x 1/8" Male BSPP Thread | 13mm Hex | 90° Long Elbow | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:369PLPX Extended Male Elbow - BSPP
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $73.82 |
| 20–59 | $66.75 |
| 60+ | $58.90 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||
|---|---|---|---|---|
| Part Number | Tube Size | BSPP / Metric | Hex (C) | H |
| 369PLPX-4M-M5 | 4 mm | M5X0.8 | 8 mm | 23.0 mm |
| 369PLPX-4M-2G | 4 mm | 1/8" | 13 mm | 22.5 mm |
| 369PLPX-4M-4G | 4 mm | 1/4" | 8 mm | 23.0 mm |
| 369PLPX-6M-M5 | 6 mm | M5X0.8 | 10 mm | 27.5 mm |
| 369PLPX-6M-M7 | 6 mm | M7X1 | 10 mm | 26.0 mm |
| 369PLPX-6M-2G | 6 mm | 1/8" | 13 mm | 27.0 mm |
| 369PLPX-6M-4G | 6 mm | 1/4" | 16 mm | 27.0 mm |
| 369PLPX-8M-2G | 8 mm | 1/8" | 13 mm | 36.0 mm |
| 369PLPX-8M-4G | 8 mm | 1/4" | 16 mm | 33.0 mm |
| 369PLPX-8M-6G | 8 mm | 3/8" | 20 mm | 33.0 mm |
| 369PLPX-10M-4G | 10 mm | 1/4" | 16 mm | 40.5 mm |
| 369PLPX-10M-6G | 10 mm | 3/8" | 20 mm | 40.5 mm |
| 369PLPX-10M-8G | 10 mm | 1/2" | 24 mm | 40.5 mm |
| 369PLPX-12M-4G | 12 mm | 1/4" | 19 mm | 44.5 mm |
| 369PLPX-12M-6G | 12 mm | 3/8" | 20 mm | 42.0 mm |
| 369PLPX-12M-8G | 12 mm | 1/2" | 24 mm | 42.0 mm |
| 369PLPX-14M-6G | 14 mm | 3/8" | 22 mm | 51.0 mm |
| 369PLPX-14M-8G | 14 mm | 1/2" | 24 mm | 48.5 mm |
