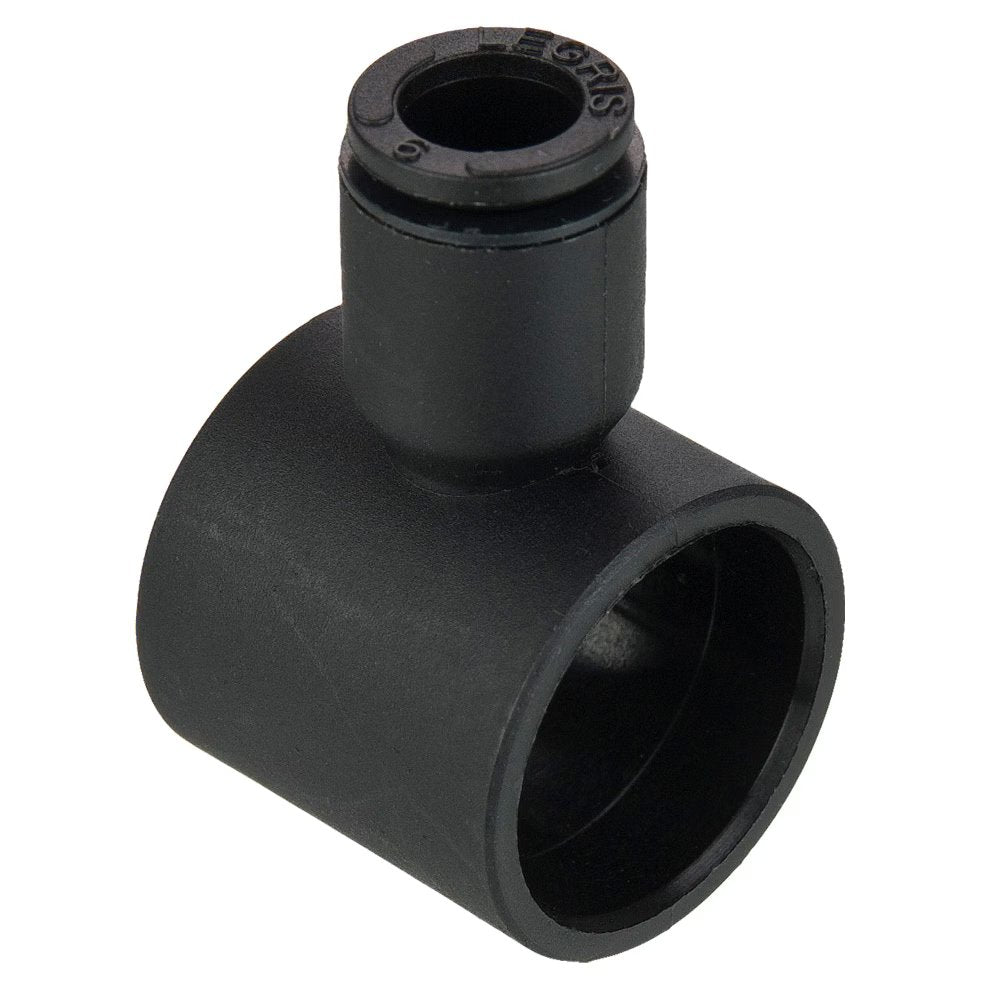

369PLPBJB-6M-M5 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 6mm Banjo Body x M5X0.8 Male M5 Thread | 18.5mm Length (L) | Glass-Reinforced Nylon | Pack of 10

369PLPBJB-6M-M5 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 6mm Banjo Body x M5X0.8 Male M5 Thread | 18.5mm Length (L) | Glass-Reinforced Nylon | Pack of 10

Sale price$36.26

by Parker Hannifin
Push-to-Connect Fittings:369PLPBJB Banjo Bodies

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $34.08
40–79 $30.82
80+ $27.20
Discounts applied in cart/checkout.

Product Data:

Series:
  • 369PLPBJB Series
Shape:

Banjo

Material(s):
  • Glass-Reinforced Nylon
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size BSPP / M5 H L2
369PLPBJB-4M-M5 4 mm M5X0.8 13.0 mm 16.0 mm
369PLPBJB-4M-2G 4 mm 1/8" 14.5 mm 18.5 mm
369PLPBJB-6M-M5 6 mm M5X0.8 13.0 mm 18.5 mm
369PLPBJB-6M-2G 6 mm 1/8" 14.5 mm 20.0 mm
369PLPBJB-6M-4G 6 mm 1/4" 18.0 mm 22.0 mm
369PLPBJB-8M-2G 8 mm 1/8" 14.5 mm 25.0 mm
369PLPBJB-8M-4G 8 mm 1/4" 18.0 mm 27.0 mm
369PLPBJB-8M-6G 8 mm 3/8" 21.5 mm 29.0 mm
369PLPBJB-10M-4G 10 mm 1/4" 18.0 mm 29.0 mm
369PLPBJB-10M-6G 10 mm 3/8" 21.5 mm 31.0 mm
369PLPBJB-12M-6G 12 mm 3/8" 21.5 mm 34.5 mm
