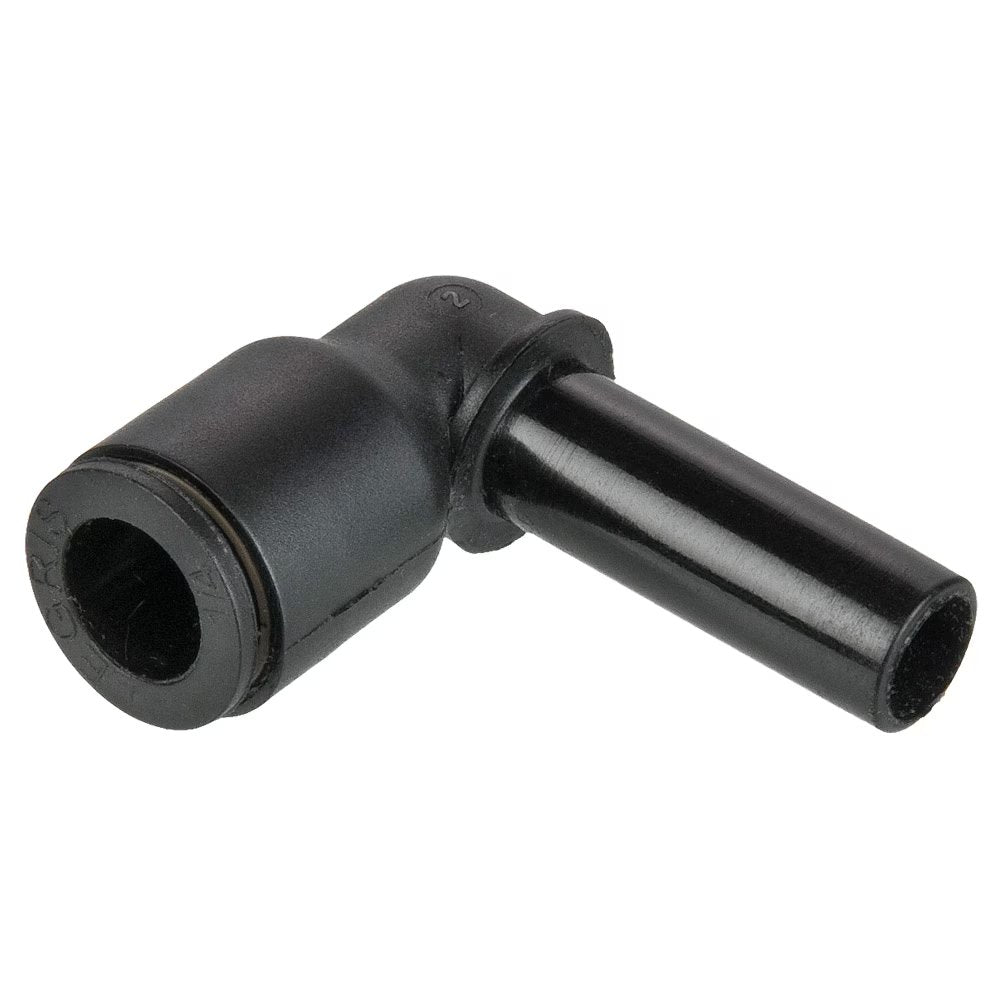

369PLPSP-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/4" Plug-In x 1/4" Tube Stem | .73" Length (L) | 90° Elbow | Glass-Reinforced Nylon | Pack of 500
by Parker Hannifin
Push-to-Connect Fittings:369PLPSP Plug-In Elbow
Package Quantity: 500 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $987.46 |
| 8–14 | $945.44 |
| 15+ | $840.39 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size 1 | Tube Size 2 | H | H1 | H2 | L |
| 369PLPSP-2 | 1/8" | 1/8" | .92" | .31" | .64" | .57" |
| 369PLPSP-4M-4 | 5/32" | 1/4" | 1.08" | .30" | .71" | .71" |
| 369PLPSP-4 | 1/4" | 1/4" | 1.20" | .43" | .83" | .73" |
| 369PLPSP-4-6 | 1/4" | 3/8" | 1.52" | .35" | .96" | .98" |
| 369PLPSP-6 | 3/8" | 3/8" | 1.52" | .35" | .96" | 1.02" |
| 369PLPSP-8 | 1/2" | 1/2" | 2.00" | .51" | 1.12" | 1.38" |
