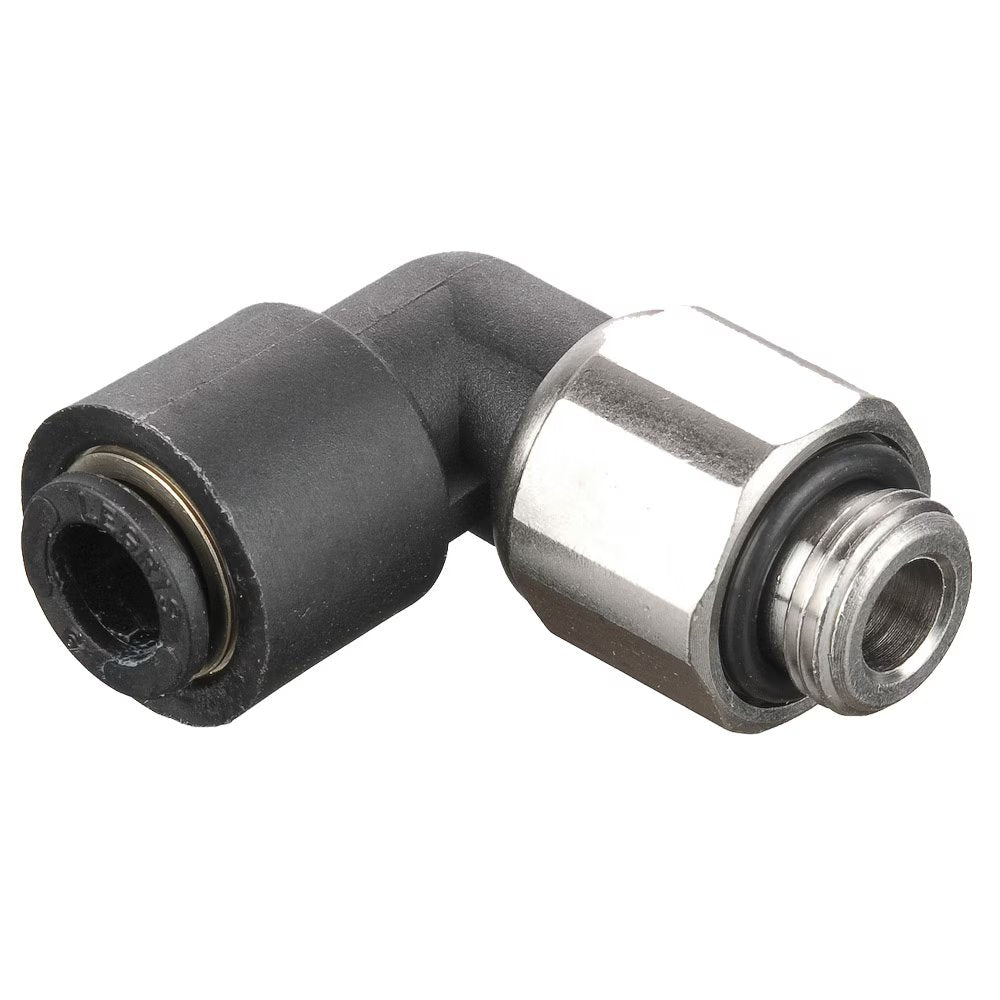

369PLPO-4M-2G by Parker | Oscillating Elbows | 4mm Tube Size x 1/8" Male BSPP Thread | 28.0mm Length | 90° Elbow | Glass Reinforced Nylon | Pack of 10

369PLPO-4M-2G by Parker | Oscillating Elbows | 4mm Tube Size x 1/8" Male BSPP Thread | 28.0mm Length | 90° Elbow | Glass Reinforced Nylon | Pack of 10

Sale price$332.47

by Parker Hannifin
Oscillating Elbows:369PLPO Oscillating Compact Elbow - BSPP, M5

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $312.52
15–29 $282.60
30+ $249.35
Discounts applied in cart/checkout.

Product Data:

Series:
  • 369PLPO Series
Shape:

90° Elbow

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/8in Male BSPP
Product Features:
  • Glass reinforced nylon 6.6 body
  • Nylon collar
  • Stainless Steel gripping ring
  • Nitrile D seal
  • Nitrile O-ring
  • Nickel-plated brass threads
Markets:
  • Pneumatics
  • Robotic
  • Automation
  • Semi-conductors
  • Packaging
  • Textile
Applications:
  • Air
  • Inert Gases
  • Cutting Fluids
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Temperature Range: -4° to +175° F (-20° to +79.4° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
Part Number Tube Size M5 / BSPP E F G H L
369PLPO-4M-M5 4 mm M5X0.8 3.0 mm 12 mm 11.0 mm 24.5 mm 17.5 mm
369PLPO-4M-2G 4 mm 1/8" 5.0 mm 13 mm 11.0 mm 23.0 mm 17.5 mm
369PLPO-6M-M5 6 mm M5X0.8 3.0 mm 12 mm 14.0 mm 27.5 mm 20.5 mm
369PLPO-6M-2G 6 mm 1/8" 5.0 mm 14 mm 14.0 mm 27.0 mm 20.5 mm
369PLPO-6M-4G 6 mm 1/4" 5.5 mm 16 mm 14.0 mm 25.5 mm 20.5 mm
369PLPO-8M-2G 8 mm 1/8" 5.0 mm 17 mm 16.0 mm 33.5 mm 23.5 mm
369PLPO-8M-4G 8 mm 1/4" 5.5 mm 17 mm 16.0 mm 31.0 mm 23.5 mm
369PLPO-8M-6G 8 mm 3/8" 5.5 mm 20 mm 16.0 mm 29.5 mm 23.5 mm
369PLPO-10M-4G 10 mm 1/4" 5.5 mm 19 mm 19.0 mm 50.0 mm 29.0 mm
369PLPO-10M-6G 10 mm 3/8" 5.5 mm 20 mm 19.5 mm 37.0 mm 29.0 mm
369PLPO-12M-4G 12 mm 1/4" 5.5 mm 21 mm 22.0 mm 46.5 mm 33.5 mm
369PLPO-12M-6G 12 mm 3/8" 5.5 mm 21 mm 22.0 mm 45.5 mm 33.5 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
