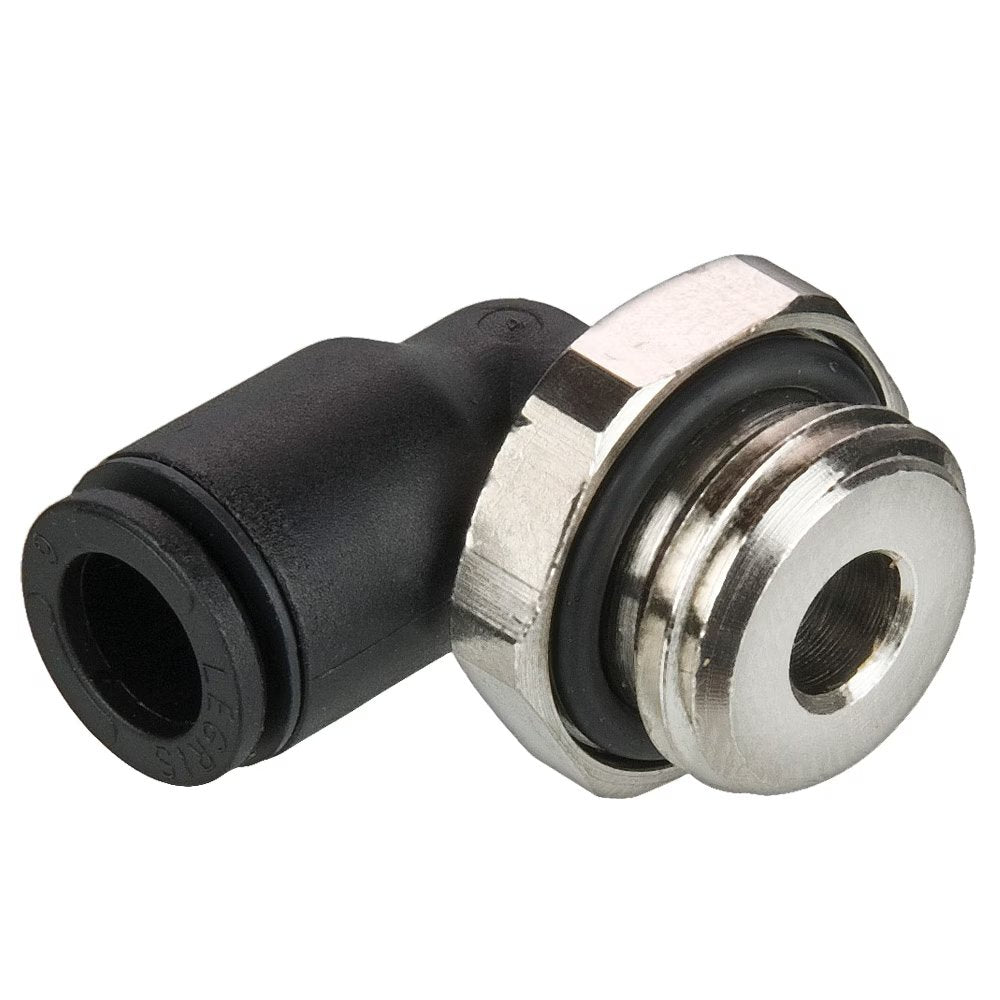

369PLP-12M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 12mm Push-to-Connect x 1/4" Male BSPP Thread | 16mm Hex | 31mm Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

369PLP-12M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 12mm Push-to-Connect x 1/4" Male BSPP Thread | 16mm Hex | 31mm Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Sale price$189.82

by Parker Hannifin
Push-to-Connect Fittings:369PLP Male Elbow - BSPP

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $178.43
20–59 $161.35
60+ $142.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • 369PLP Series
Shape:

90° Elbow

Ends Configuration:
  • 12mm Push-to-Connect
  • 1/4in Male BSPP
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size BSPP/Metric Hex (C) H L
369PLP-3M-M3 3 mm M3X0.5 8 mm 15.0 mm 14.5 mm
369PLP-3M-M5 3 mm M5X0.8 8 mm 13.5 mm 14.5 mm
369PLP-4M-M3 4 mm M3X0.5 8 mm 15.0 mm 14.5 mm
369PLP-4M-M5 4 mm M5X0.8 8 mm 15.0 mm 14.5 mm
369PLP-4M-2G 4 mm 1/8" 13 mm 13.0 mm 14.0 mm
369PLP-4M-4G 4 mm 1/4" 16 mm 13.0 mm 14.0 mm
369PLP-6M-M5 6 mm M5X0.8 8 mm 15.5 mm 16.0 mm
369PLP-6M-M7 6 mm M7X1 10 mm 17.5 mm 16.0 mm
369PLP-6M-M10 6 mm M10X1 13 mm 15.0 mm 14.0 mm
369PLP-6M-M12 6 mm M12X1.5 15 mm 15.0 mm 16.0 mm
369PLP-6M-2G 6 mm 1/8" 13 mm 15.0 mm 16.0 mm
369PLP-6M-4G 6 mm 1/4" 16 mm 15.0 mm 16.0 mm
369PLP-6M-6G 6 mm 3/8" 20 mm 15.5 mm 16.0 mm
369PLP-6M-8G 6 mm 1/2" 24 mm 16.0 mm 16.0 mm
369PLP-8M-M10 3 mm M10X1 13 mm 20.5 mm 23.0 mm
369PLP-8M-M12 8 mm M12X1.5 15 mm 19.5 mm 23.0 mm
369PLP-8M-2G 8 mm 1/8" 13 mm 20.5 mm 20.0 mm
369PLP-8M-4G 8 mm 1/4" 16 mm 18.5 mm 23.0 mm
369PLP-8M-6G 8 mm 3/8" 20 mm 18.5 mm 23.0 mm
369PLP-8M-8G 8 mm 1/2" 24 mm 19.0 mm 23.0 mm
369PLP-10M-4G 10 mm 1/4" 16 mm 23.5 mm 26.5 mm
369PLP-10M-6G 10 mm 3/8" 20 mm 22.0 mm 26.5 mm
369PLP-10M-8G 10 mm 1/2" 24 mm 22.0 mm 26.5 mm
369PLP-12M-4G 12 mm 1/4" 16 mm 26.5 mm 31.0 mm
369PLP-12M-6G 12 mm 3/8" 20 mm 25.0 mm 31.0 mm
369PLP-12M-8G 12 mm 1/2" 24 mm 25.0 mm 31.0 mm
369PLP-14M-6G 14 mm 3/8" 8 mm 15.0 mm 14.5 mm
369PLP-14M-8G 14 mm 1/2" 24 mm 27.0 mm 35.5 mm
369PLP-16M-6G 16 mm 3/8" 27 mm 54.5 mm 39.0 mm
369PLP-16M-8G 16 mm 1/2" 27 mm 54.5 mm 39.0 mm
