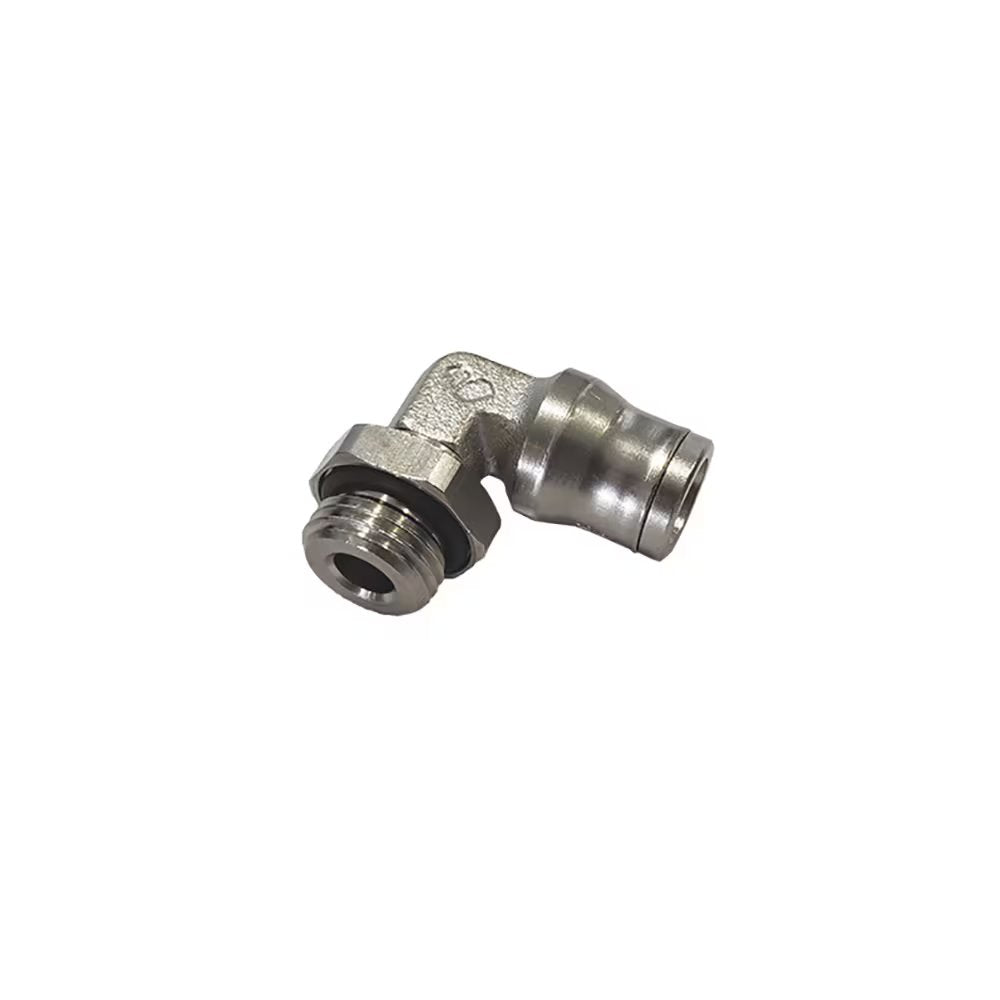

3699 14 17 by Parker | Legris Stud Swivel Fitting | 14 mm Tube Size x 3/8" Male BSPP Thread | 20 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

3699 14 17 by Parker | Legris Stud Swivel Fitting | 14 mm Tube Size x 3/8" Male BSPP Thread | 20 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

Sale price$133.34

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3699 Compact Elbow, Male BSPP, Metric Thread and UNF

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $125.34
20–59 $113.34
60+ $100.01
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3699 Series
Shape:

90° Elbow

Ends Configuration:
  • 14mm Push-to-Connect
  • 3/8in Male BSPP
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C E F G H J L Kg
3699 04 20 5/32" 10-32 - 10 mm .39" .71" - .71 .112 Kg
3699 56 10 1/4" 1/8" - 13 mm 12 mm 19 mm - 21.5 mm .026 Kg
3699 56 13 1/4" 1/4" - 16 mm 12 mm 19.5 mm - 21.5 mm .032 Kg
3699 04 19 4 mm M5x0.8 3.5 mm 10 mm 10 mm 18 mm 7 mm 18 mm .011 Kg
3699 04 52 4 mm M6x1 4.5 mm 10 mm 10 mm 18 mm 7 mm 18 mm .011 Kg
3699 04 56 4 mm M8x1 5 mm 11 mm 10 mm 18 mm 7 mm 18 mm .011 Kg
3699 04 10 4 mm 1/8" 4.5 mm 13 mm 10 mm 17 mm 7 mm 18 mm .014 Kg
3699 04 13 4 mm 1/4" 5.5 mm 16 mm 10 mm 17.5 mm 7 mm 18 mm .019 Kg
3699 06 60 6 mm M10x1 5.5 mm 13 mm 12 mm 19 mm 8 mm 21.5 mm .017 Kg
3699 06 10 6 mm 1/8" 4.5 mm 13 mm 12 mm 19 mm 8 mm 21.5 mm .018 Kg
3699 06 13 6 mm 1/4" 5.5 mm 16 mm 12 mm 19.5 mm 8 mm 21.5 mm .022 Kg
3699 08 10 8 mm 1/8" 4.5 mm 13 mm 15 mm 20.5 mm 10 mm 23.5 mm .021 Kg
3699 08 13 8 mm 1/4" 5.5 mm 16 mm 15 mm 21.5 mm 10 mm 23.5 mm .027 Kg
3699 08 17 8 mm 3/8" 5.5 mm 20 mm 15 mm 21.5 mm 10 mm 23.5 mm .033 Kg
3699 10 13 10 mm 1/4" 5.5 mm 16 mm 17.5 mm 27 mm 12 mm 29 mm .037 Kg
3699 10 17 10 mm 3/8" 5.5 mm 20 mm 17.5 mm 25.5 mm 12 mm 29 mm .043 Kg
3699 12 13 12 mm 1/4" 5.5 mm 16 mm 19.5 mm 29.5 mm 15 mm 31 mm .050 Kg
3699 12 17 12 mm 3/8" 5.5 mm 20 mm 19.5 mm 28.5 mm 15 mm 31 mm .057 Kg
3699 12 21 12 mm 1/2" 7 mm 24 mm 19.5 mm 28.5 mm 15 mm 31 mm .065 Kg
3699 14 17 14 mm 3/8" 5.5 mm 20 mm 21.5 mm 29 mm 16 mm 34 mm .059 Kg
3699 14 21 14 mm 1/2" 7 mm 24 mm 21.5 mm 29.5 mm 16 mm 34 mm .062 Kg

The body swivels for positioning purposes. Maxi pressure = 20 bar

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
