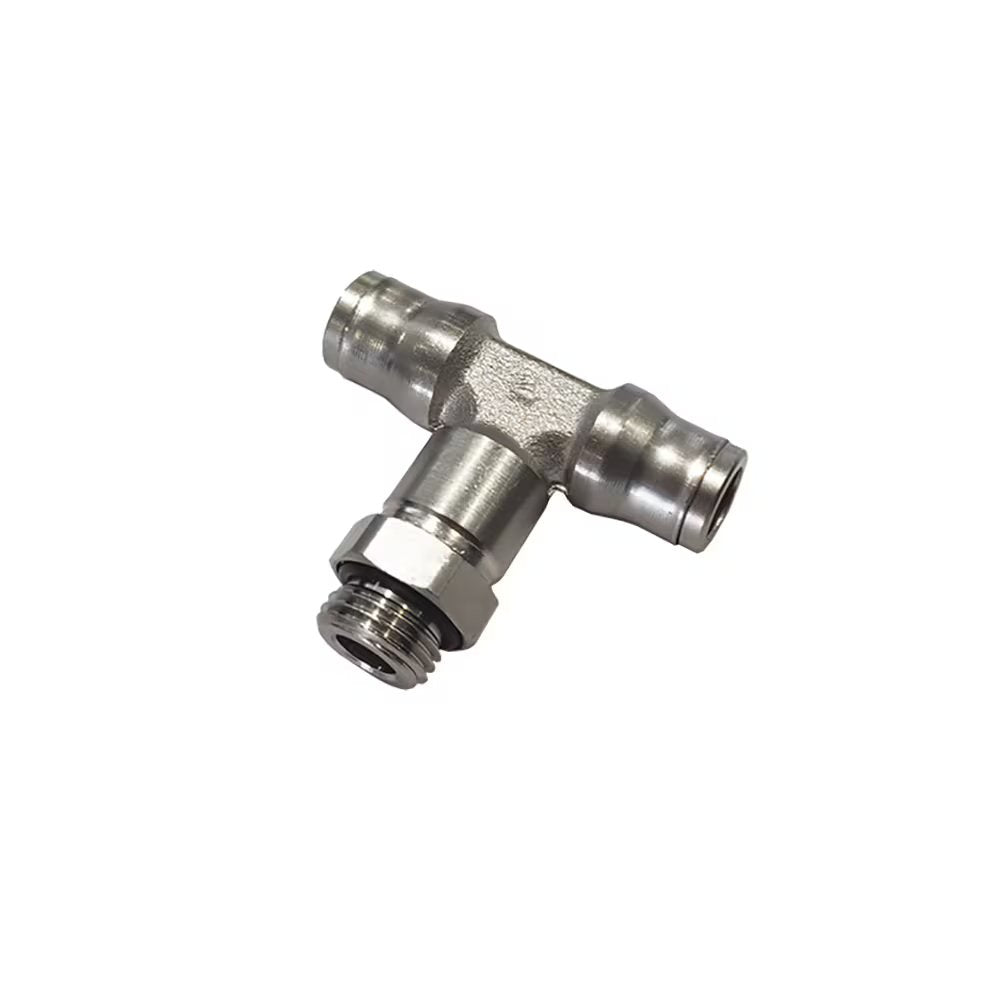

3698 04 19 by Parker | Legris Stud Swivel Fitting | 4mm Tube Size x M5x0.8 Male M5 Metric Thread | 10mm Hex | 36mm Length | Tee | Nickel-Plated Brass | Pack of 10

3698 04 19 by Parker | Legris Stud Swivel Fitting | 4mm Tube Size x M5x0.8 Male M5 Metric Thread | 10mm Hex | 36mm Length | Tee | Nickel-Plated Brass | Pack of 10

Sale price$157.24

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3698 - male branch tee tube to tube to UNF, BSPP or M5

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $147.81
20–59 $133.65
60+ $117.93
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3698 Series
Shape:

Tee

Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C E F G H J L/2 Kg
3698 04 20 5/32" 10-32 - 10 mm .39" 1.00" - .71" .0196 Kg
3698 04 19 4 mm M5x0.8 3.5 mm 10 mm 10 mm 27.5 mm 7 mm 18 mm .018 Kg
3698 04 10 4 mm 1/8" 4.5 mm 13 mm 10 mm 25.5 mm 7 mm 18 mm .021 Kg
3698 06 10 6 mm 1/8" 4.5 mm 13 mm 12 mm 31 mm 8 mm 21.5 mm .031 Kg
3698 06 13 6 mm 1/4" 5.5 mm 16 mm 12 mm 30.5 mm 8 mm 21.5 mm .035 Kg
3698 08 10 8 mm 1/8" 4.5 mm 14 mm 15 mm 33.5 mm 10 mm 23.5 mm .041 Kg
3698 08 13 8 mm 1/4" 5.5 mm 16 mm 15 mm 34 mm 10 mm 23.5 mm .045 Kg
3698 10 13 10 mm 1/4" 5.5 mm 18 mm 17.5 mm 42 mm 12 mm 29 mm .066 Kg
3698 12 17 12 mm 3/8" 5.5 mm 20 mm 19.5 mm 46 mm 15 mm 31 mm .088 Kg
3698 14 21 14 mm 1/2" 7 mm 24 mm 21.5 mm 49 mm 16 mm 34 mm .119 Kg
