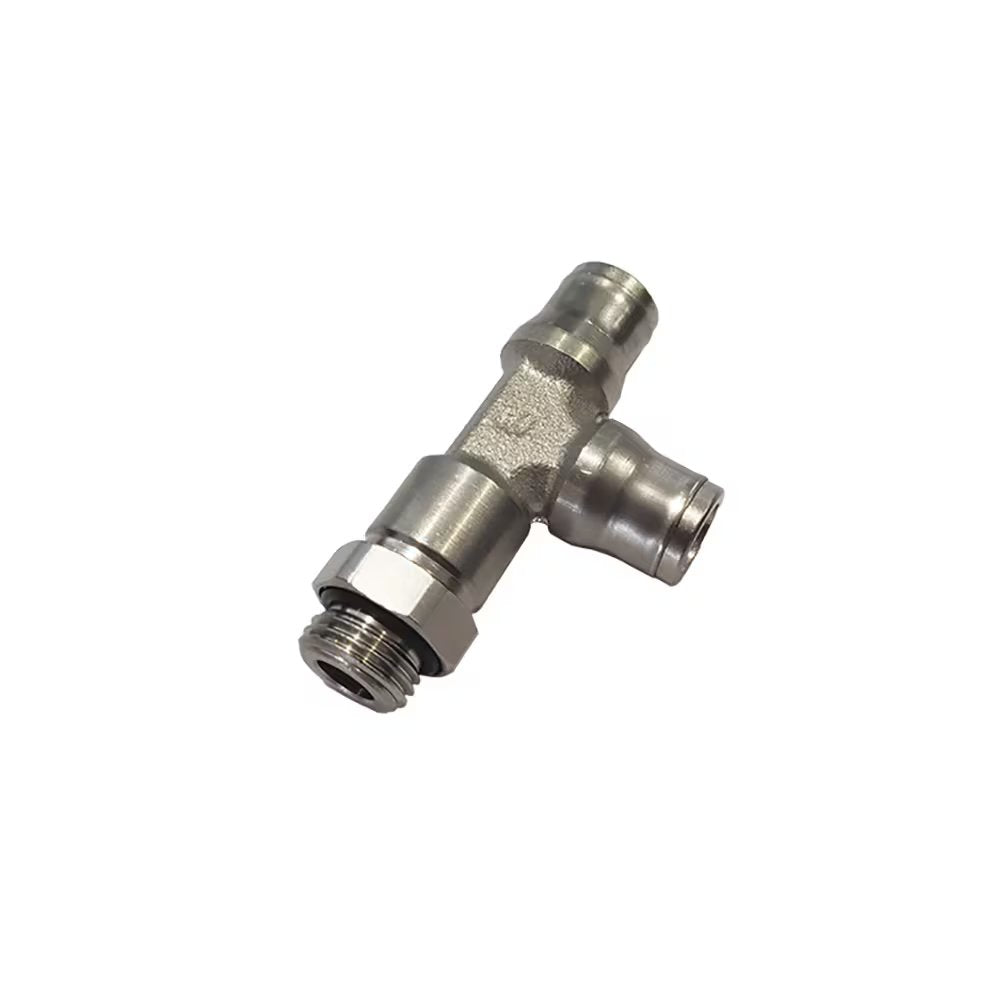

3693 04 10 by Parker | Legris Stud Swivel Fitting | 4 mm Tube Size x 1/8" Male BSPP Thread | 13 mm Hex | Tee | Nickel-Plated Brass | Pack of 10

3693 04 10 by Parker | Legris Stud Swivel Fitting | 4 mm Tube Size x 1/8" Male BSPP Thread | 13 mm Hex | Tee | Nickel-Plated Brass | Pack of 10

Sale price$137.00

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3693 Stud Run Tee, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $128.78
20–59 $116.45
60+ $102.75
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3693 Series
Shape:

Tee

Ends Configuration:
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • 1/8in Male BSPP
  • Some Ends Match
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C E F G H H1 J L Kg
3693 04 19 4 mm M5x0.8 3.5 mm 10 mm 10 mm 22.5 mm 18 mm 7 mm 23 mm .019 Kg
3693 04 10 4 mm 1/8" 4.5 mm 13 mm 10 mm 20.5 mm 18 mm 7 mm 23 mm .021 Kg
3693 06 10 6 mm 1/8" 4.5 mm 13 mm 12 mm 25 mm 21.5 mm 8 mm 28 mm .031 Kg
3693 06 13 6 mm 1/4" 5.5 mm 16 mm 12 mm 24.5 mm 21.5 mm 8 mm 28 mm .035 Kg
3693 08 10 8 mm 1/8" 4.5 mm 14 mm 15 mm 26.5 mm 23.5 mm 10 mm 31 mm .041 Kg
3693 08 13 8 mm 1/4" 5.5 mm 16 mm 15 mm 26.5 mm 23.5 mm 10 mm 31 mm .044 Kg
3693 10 13 10 mm 1/4" 5.5 mm 18 mm 17.5 mm 33 mm 29 mm 12 mm 37.5 mm .066 Kg
3693 12 17 12 mm 3/8" 5.5 mm 20 mm 19.5 mm 36.5 mm 31 mm 15 mm 40.5 mm .090 Kg
3693 14 21 14 mm 1/2" 7 mm 24 mm 21.5 mm 38.5 mm 34 mm 16 mm 45 mm .112 Kg

The body swivels for positioning purposes.
