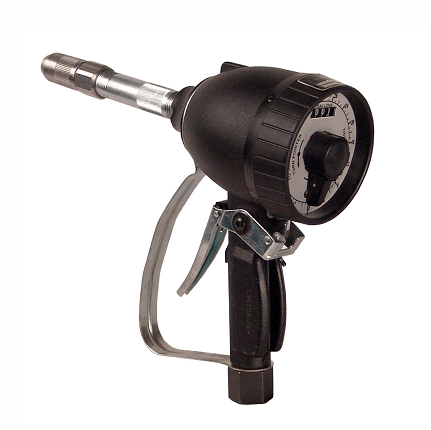

3690-C Alemite Mechanical Preset Meter - Dial Registers: Quart - Fluids: Gear Oil, Motor Oil, ATF - Odometer Registers: Gallon - Dial range: Quart (0- 60) - Extension: Rigid - Beltsmart
Alemite

3690-C by Alemite | Mechanical Preset Meter | Dial Registers: Quart | Fluids: Gear Oil, Motor Oil, ATF | Odometer Registers: Gallon | Dial range: Quart (0- 60) | Extension: Rigid | Valve inlet: 1/2" Female NPTF with swivel | Max Operating PSI: 1000 PSI

Sale price$1,464.50
Alemite Control Valves and Meters - Mechanical Preset Meters

Product Data:
Applications:
  • Alemite Mechanical Preset Meters feature a classic dial design to accurately measure and totalize fluid dispensed, where automatic fill capability is important.
Features:
  • Large, easy to read dial face
  • Meter automatically shuts off when preset amount has been dispensed
  • Latch control permits shut off during operation
  • 1,000 psi maximum operating pressure
  • Non-drip nozzle included
  • Fluid compatibility - Oil, gear oil,ATF
  • Valve inlet: 1/2" NPTF(f) with swivel

Part Number Dial registers Fluids Odometer registers Dial range Extension Non-Drip tip Weight
3690-C Quart Gear Oil, Motor Oil, ATF Gallon Quart (0- 60) Rigid Manual High Volume 5.1 Lb.
3691-C Gallon Gear Oil, Motor Oil, ATF Gallon Gallon (0-15) Rigid Manual High Volume 5.1 Lb.
3692-C Quart AntiFreeze Quart Quart (0- 60) Rigid Manual High Volume 5.1 Lb.
3693-C Liter Gear Oil, Motor Oil, ATF Liter Liter (0-60) Rigid Manual High Volume 5.1 Lb.
3696-C Quart Gear Oil, Motor Oil, ATF Quart Quart (0-16) Rigid Manual High Volume 5.1 Lb.

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
