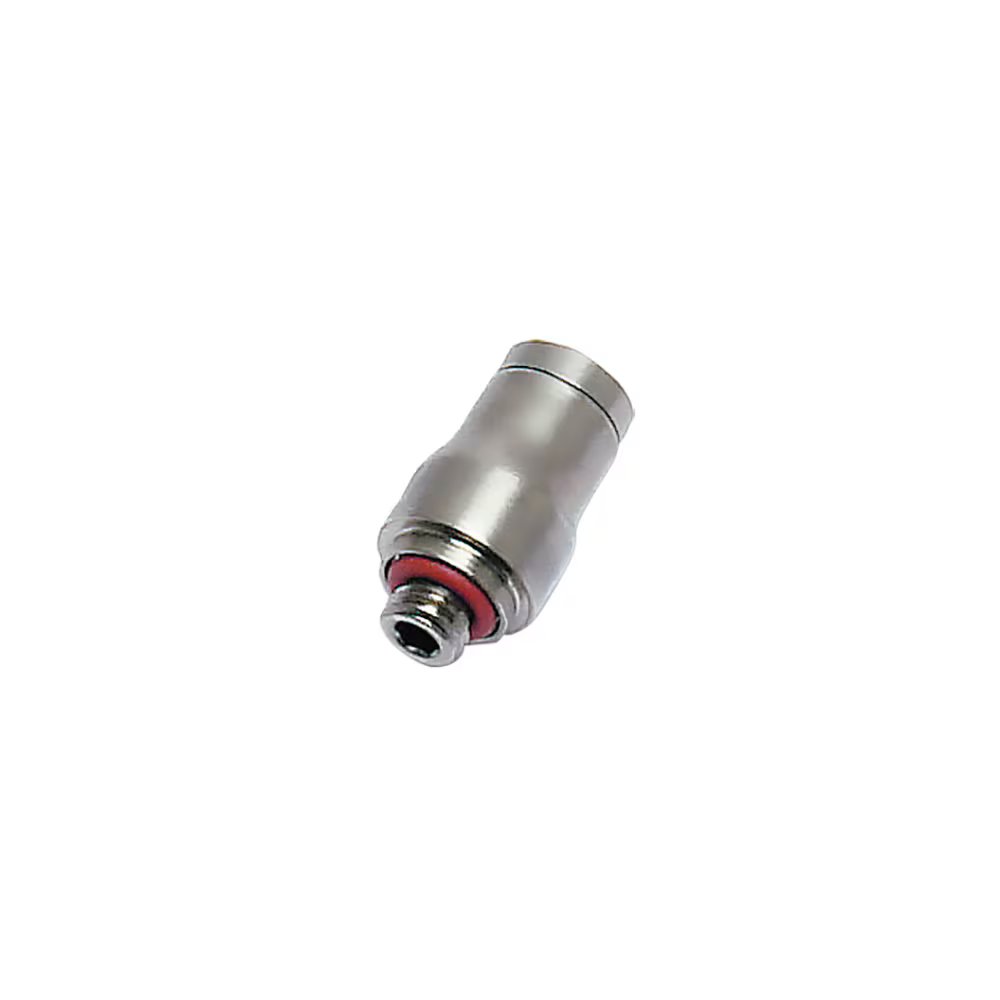

3681 04 19 by Parker | Legris Stud Fitting w/ Internal Hexagon | 4 mm Tube Size x M5x0.8 Male M5 Metric Thread | 19.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

3681 04 19 by Parker | Legris Stud Fitting w/ Internal Hexagon | 4 mm Tube Size x M5x0.8 Male M5 Metric Thread | 19.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$56.79

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3681 Stud Fitting with Internal Hexagon, Male Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $53.38
40–79 $48.27
80+ $42.59
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3681 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C E F G H Kg
3681 04 19 4 mm M5x0.8 3.5 mm 2.5 mm 10 mm 16 mm .005 Kg
