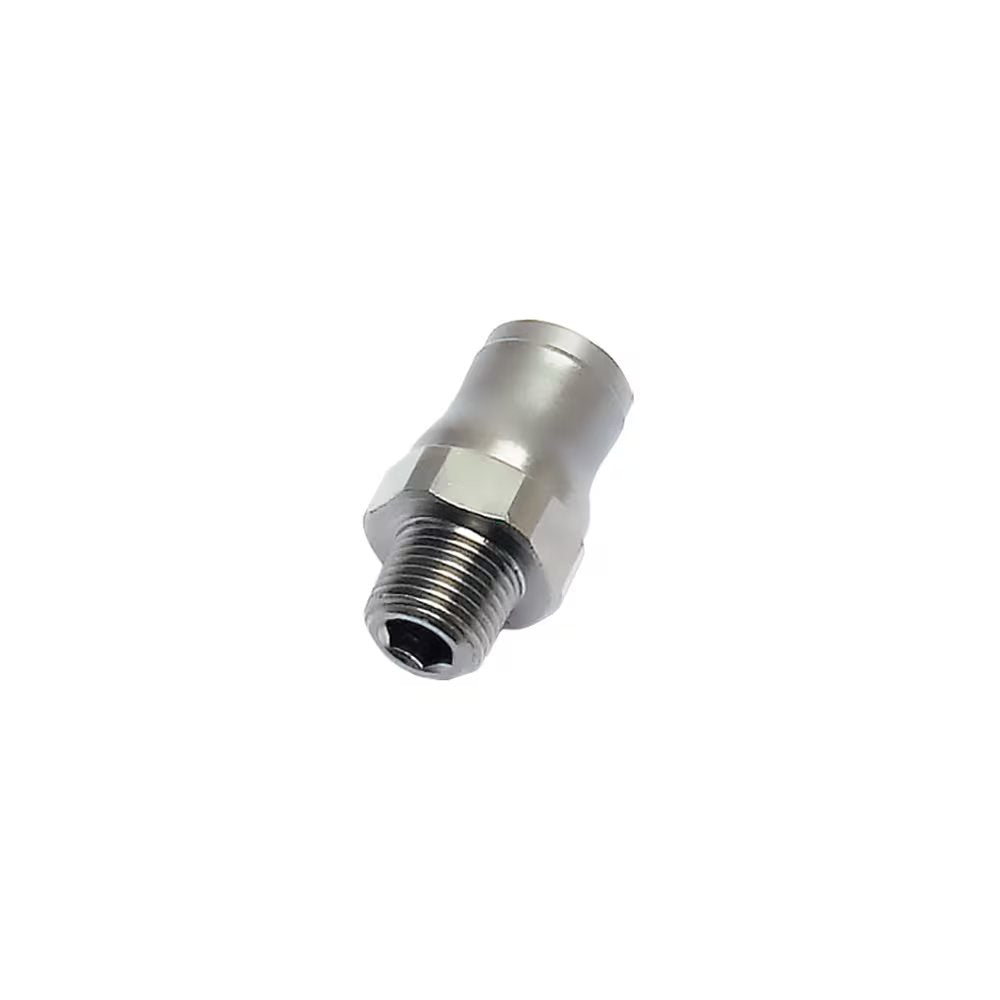

3675 14 17 by Parker | Legris Stud Fitting | 14mm Tube Size x 3/8" Male BSPT Thread | 22mm Hex | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3675 Stud Fitting, Male BSPT Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $118.15 |
| 20–59 | $106.84 |
| 60+ | $94.27 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | C | F1 | F2 | H | Kg |
| 3675 04 10 | 4 mm | 1/8" | 10 mm | 3 mm | 15 mm | .009 Kg |
| 3675 04 13 | 4 mm | 1/4" | 14 mm | 3 mm | 15 mm | .017 Kg |
| 3675 06 10 | 6 mm | 1/8" | 13 mm | 4 mm | 17 mm | .017 Kg |
| 3675 06 13 | 6 mm | 1/4" | 14 mm | 4 mm | 17 mm | .018 Kg |
| 3675 08 10 | 8 mm | 1/8" | 15 mm | 5 mm | 19 mm | .015 Kg |
| 3675 08 13 | 8 mm | 1/4" | 16 mm | 6 mm | 18 mm | .019 Kg |
| 3675 10 13 | 10 mm | 1/4" | 18 mm | 7 mm | 23 mm | .026 Kg |
| 3675 10 17 | 10 mm | 3/8" | 18 mm | 8 mm | 22.5 mm | .009 Kg |
| 3675 10 21 | 10 mm | 1/2" | 22 mm | 8 mm | 22.5 mm | .056 Kg |
| 3675 12 13 | 12 mm | 1/4" | 20 mm | 7 mm | 25.5 mm | .033 Kg |
| 3675 12 17 | 12 mm | 3/8" | 20 mm | 9 mm | 24 mm | .035 Kg |
| 3675 12 21 | 12 mm | 1/2" | 22 mm | 10 mm | 23 mm | .051 Kg |
| 3675 14 17 | 14 mm | 3/8" | 22 mm | 9 mm | 27 mm | .042 Kg |
| 3675 14 21 | 14 mm | 1/2" | 24 mm | 11 mm | 26 mm | .057 Kg |
