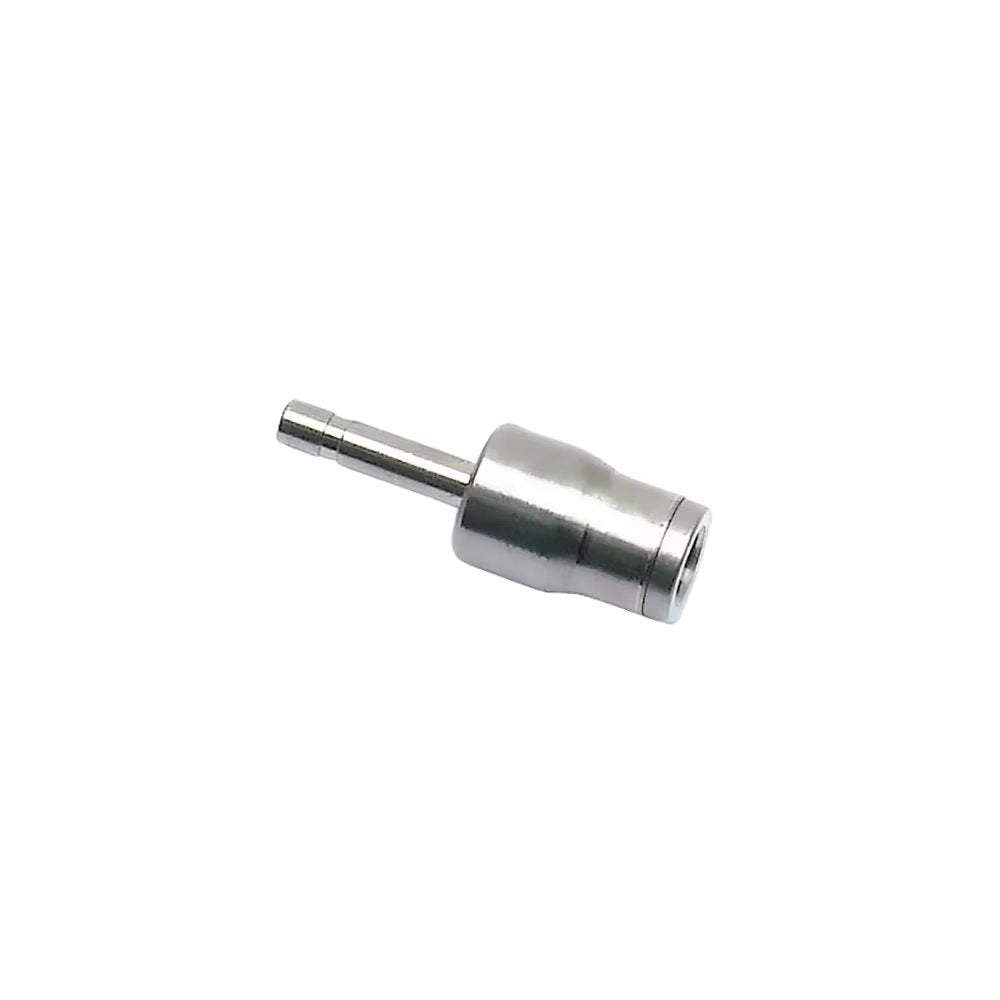

3668 06 04 by Parker | Legris Plug-In Increaser | 6 mm Tube Size x 4 mm Tube Size | 36 mm Length | Straight | Nickel-Plated Brass | Pack of 10

3668 06 04 by Parker | Legris Plug-In Increaser | 6 mm Tube Size x 4 mm Tube Size | 36 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$205.61

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Accessories :3668 Plug-In Increaser

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $193.27
20–59 $174.77
60+ $154.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3668 Series
Shape:

Straight

Ends Configuration:
  • 6mm Push-to-Connect
  • 4mm Push-to-Connect
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD1 ØD2 G L L1 L2 Kg
3668 06 04 6 mm 4 mm 12 mm 36 mm 17 mm 21.5 mm .010 Kg
