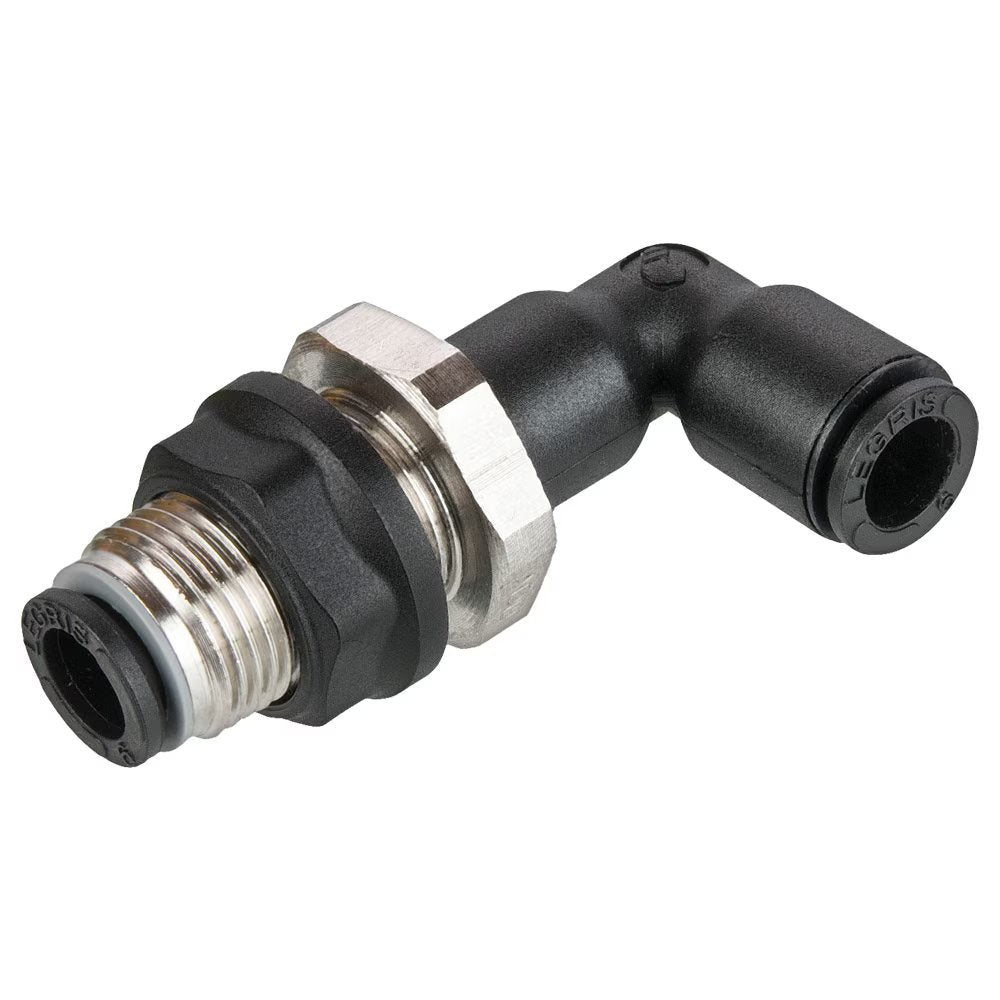

365PLPBH-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Union Fittings | 3/8" Equal Bulkhead | 22mm Hex (C1) | 22mm Hex (C2) | 90° Elbow | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:365PLPBH Equal Bulkhead Elbow
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $169.47 |
| 20–59 | $153.25 |
| 60+ | $135.22 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | Hex (C1) | Hex (C2) | K (Max) | H | L | Bulkhead Thread | Bulkhead Hole Diameter |
| 365PLPBH-2 | 1/8" | 13 mm | 13 mm | .28" | .71" | .57" | M10 X 1 | 10 mm |
| 365PLPBH-4 | 1/4" | 18 mm | 17 mm | .32" | .87" | .71" | M15 X 1 | 15 mm |
| 365PLPBH-6 | 3/8" | 22 mm | 22 mm | .33" | 1.08" | 1.00" | M18 X 1.5 | 18 mm |
| 365PLPBH-8 | 1/2" | 29 mm | 27 mm | .41" | 1.54" | 1.38" | M25 X 1.5 | 25 mm |
