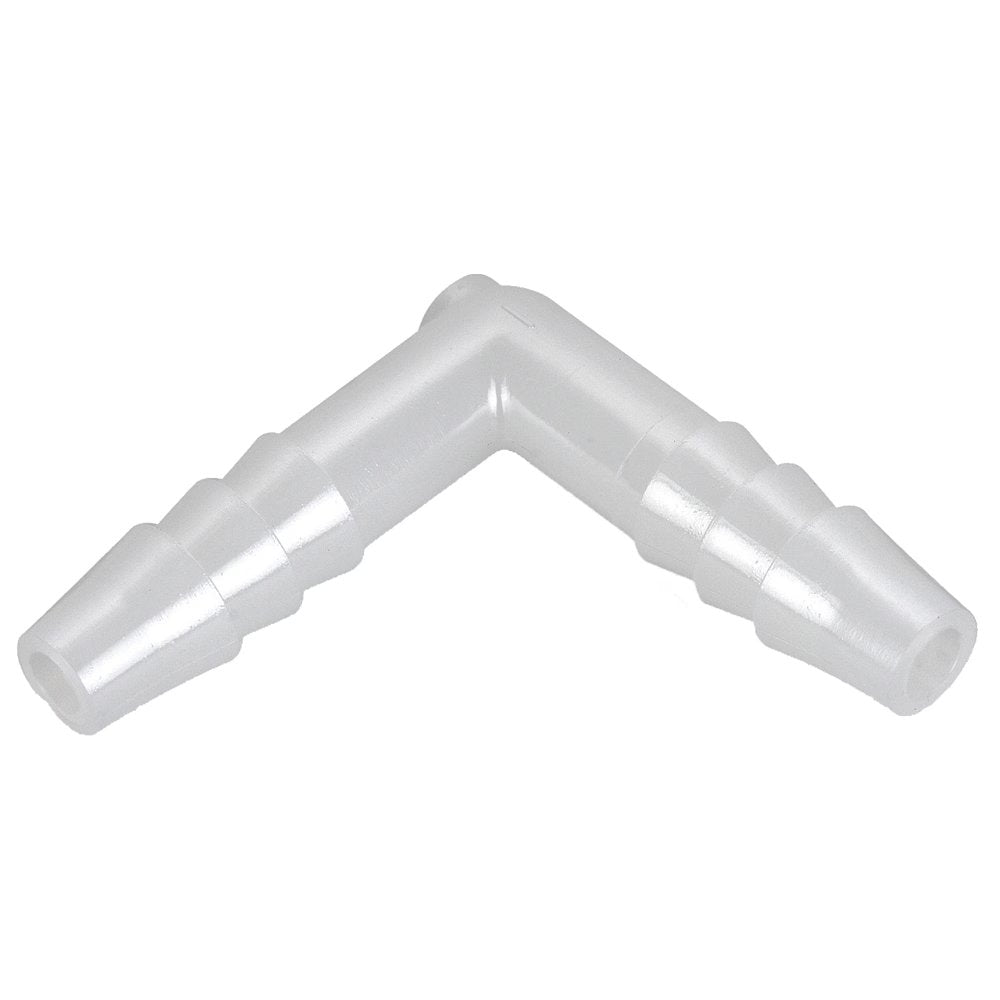

365HB-12N by Parker | Tube to Tube Fitting | 3/4" Union Barb x 3/4" Barb | 1.48" Length | 90° Elbow | White | Nylon
Minimum Order Quantity: 5 Units
by Parker Hannifin
Par-Barb® Fittings:Union Elbow 365HB
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.18 |
| 40–79 | $1.97 |
| 80+ | $1.74 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | Up to 125 PSI (8.6 bar) |
| Temperature Range: | Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C) |
| Compatible Tubing: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| White Nylon Part Number | Black Polypropylene Part Number | Tube Or Hose ID 1 | Tube Or Hose ID 2 | OD 1 | OD 2 | M | N | Flow Diameter (D) |
| 365HB-4N | 365HB-4PP | 1/4" | 1/4" | .31" | .31" | 1.13" | 1.13" | .15" |
| 365HB-6N | 365HB-6PP | 3/8" | 3/8" | .43" | .43" | 1.26" | 1.26" | .25" |
| 365HB-8-4N | 365HB-8-4PP | 1/2" | 1/4" | .55" | .31" | 1.26" | 1.24" | .16" |
| 365HB-8-6N | 365HB-8-6PP | 1/2" | 3/8" | .55" | .43" | 1.26" | 1.27" | .25" |
| 365HB-8N | 365HB-8PP | 1/2" | 1/2" | .55" | .55" | 1.26" | 1.26" | .37" |
| 365HB-10N | 365HB-10PP | 5/8" | 5/8" | .66" | .66" | 1.37" | 1.37" | .46" |
| 365HB-12N | 365HB-12PP | 3/4" | 3/4" | .80" | .80" | 1.48" | 1.48" | .57" |
