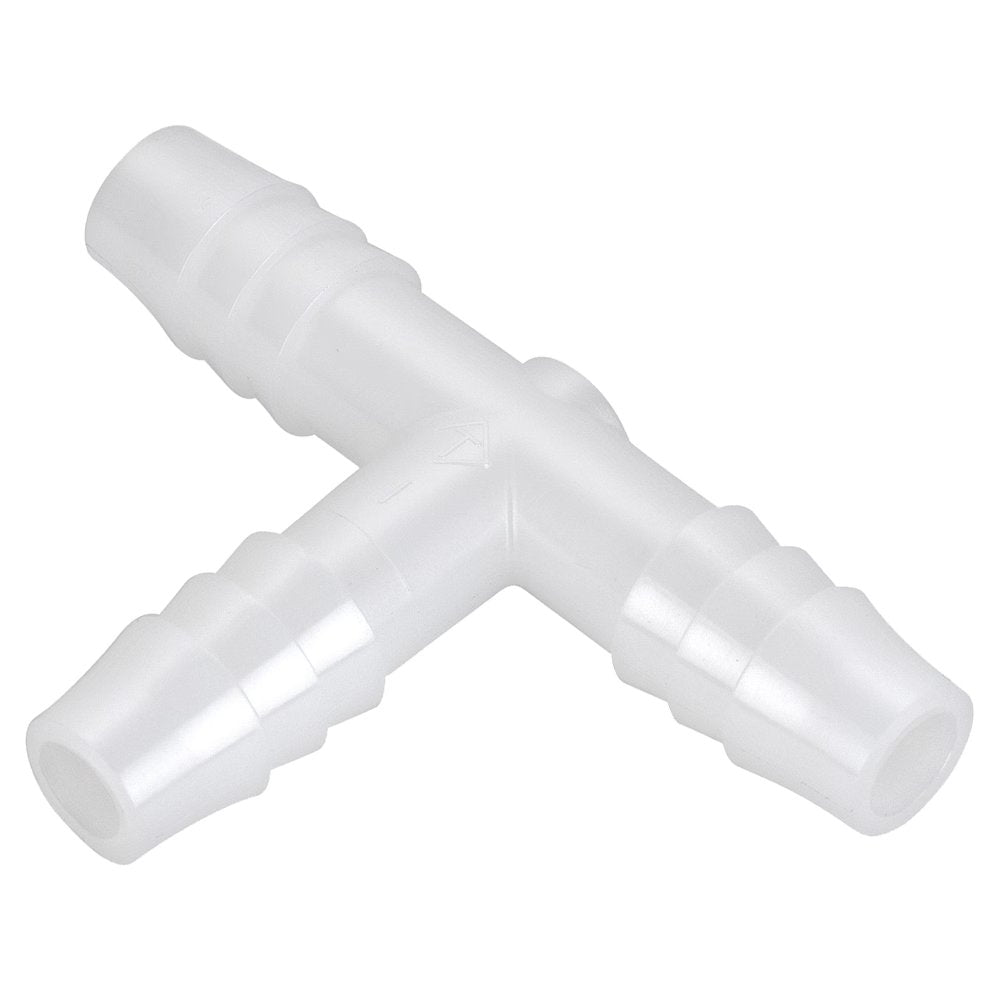

364HB-3N by Parker | Tube to Tube Fitting | 3/16" Union Barb x 3/16" Barb | 1.49" Length | Tee | White | Nylon
Minimum Order Quantity: 10 Units
by Parker Hannifin
Par-Barb® Fittings:Union Tee 364HB
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.70 |
| 40–79 | $1.54 |
| 80+ | $1.36 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | Up to 125 PSI (8.6 bar) |
| Temperature Range: | Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C) |
| Compatible Tubing: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| White Nylon Part Number | Black Polypropylene Part Number | Tube Or Hose ID 1-2 | Tube Or Hose ID 3 | OD 1-2 | OD 3 | L | N | Flow Diameter (D) |
| 364HB-3N | 364HB-3PP | 3/16" | 3/16" | .25" | .25" | 1.49" | .75" | .12" |
| 364HB-4N | 364HB-4PP | 1/4" | 1/4" | .32" | .32" | 1.92" | .96" | .16" |
| 364HB-5N | 364HB-5PP | 5/16" | 5/16" | .36" | .36" | 2.22" | 1.17" | .16" |
| 364HB-6-4N | 364HB-6-4PP | 3/8" | 1/4" | .44" | .31" | 2.23" | 1.75" | .16" |
| 364HB-6N | 364HB-6PP | 3/8" | 3/8" | .43" | .43" | 2.22" | 1.18" | .16" |
| 364HB-6-8N | 364HB-6-8PP | 3/8" | 1/2" | .43" | .56" | 2.22" | 1.27" | .25" |
| 364HB-8-6N | 364HB-8-6PP | 1/2" | 3/8" | .55" | .43" | 2.52" | 1.27" | .25" |
| 364HB-8N | 364HB-8PP | 1/2" | 1/2" | .56" | .56" | 2.52" | 1.27" | .37" |
| 364HB-10N | 364HB-10PP | 5/8" | 5/8" | .66" | .66" | 2.74" | 1.37" | .46" |
