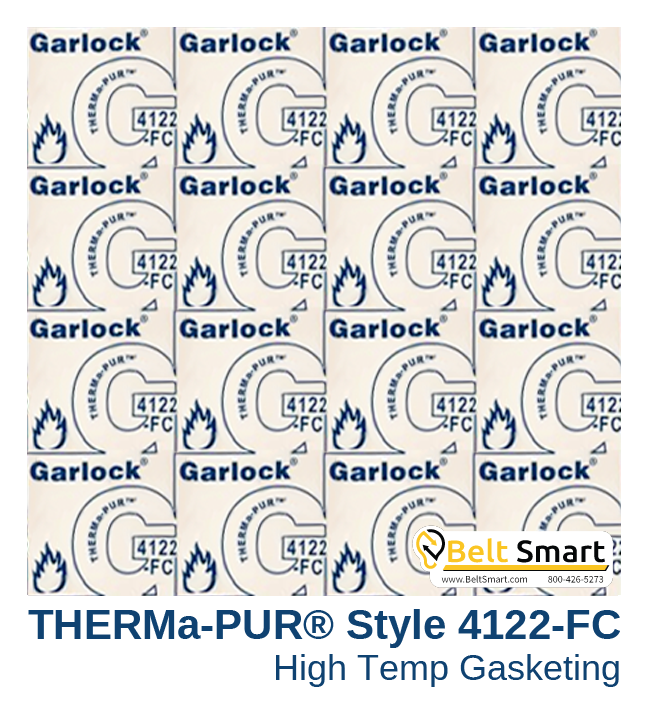

36468-4063 by Garlock | THERMa-PUR™ | Style 4122-FC | 0.063in Thick | 40in x 40in

Overview:
FC, CMG, KAMM, Spiral Wound THERMa-PUR™ is a proprietary new gasketing material designed for use in high temperature sealing applications and is produced using an environmentally friendly solvent-free process. THERMa-PUR™ is yet another innovative Garlock sealing solution that provides more than just temperature resistance.
Value & Benefits:
Heat & Pressure Resistant Extreme Temperature: Able to withstand high temperatures, whether continuous or in thermal cycling conditions Oxidation Resistance: Contains proprietary materials that provide improved weight loss characteristics over other high temperature solutions.(see graph) Hydrophobic & Electrically Insulating: Resists water and provides electrical isolation thus reducing the possibility of corrosion between flanges made of dissimilar metals Easy Release from Flanges: Does not stick to flanges making removal of gaskets easy and fast Safer Handling (4122-FC): Patent-pending fiber core makes gaskets safer to handle when compared to traditional high temperature gaskets with steel cores
Ideal For:
Marine and Land-based Exhaust Systems Biomass Gasification Process Oil and Gas Production Mineral and Fertilizer Processing Incineration Process Co-generation Systems Turbochargers Equipment Process Drying Equipment
Configurations:
Available in; Sheet Standard Flexseal Spiral Wound Configurations: RW/RWI/SW/SWI Standard Flexseal Spiral Wound Configurations with facing material on the winding faces Kammprofile THERMONIC™ Corrugated metal gasket

Typical Physical Properties

		4122-FC
Temperature	Continuous max.	+1832°F (1000°C)
Pressure1 psig (bar).	4122-FC	500 (34.5)
P x T, max.2 psig x °F (bar x °C)	4122-FC	150,000 (5,100)
Typical Physical Properties for 4122-FC*:
ASTM Test Method F36 Compressibility, range, % Recovery %		35-45 18
ASTM F38 Creep Relaxation, %		25
ASTM F152 Tensile, w/insert, psi (N/mm2)		1,200 (8.3)
ASTM F1315 Density, lbs./ft3 (grams/cm3)		85 (1.36)
ASTM D149 Dielectric Properties, volts/mil.		100
Gasket Factor 'M'		3.0
Gasket Factor 'Y'		10,000

Order Code (Part Number)	Style	Thickness (in.)	Width (in.)	Length (in.)
36468-4063	4122-FC	0.016"	60"	120"
Overview:
FC, CMG, KAMM, Spiral Wound THERMa-PUR™ is a proprietary new gasketing material designed for use in high temperature sealing applications and is produced using an environmentally friendly solvent-free process. THERMa-PUR™ is yet another innovative Garlock sealing solution that provides more than just temperature resistance.
Value & Benefits:
Heat & Pressure Resistant Extreme Temperature: Able to withstand high temperatures, whether continuous or in thermal cycling conditions Oxidation Resistance: Contains proprietary materials that provide improved weight loss characteristics over other high temperature solutions.(see graph) Hydrophobic & Electrically Insulating: Resists water and provides electrical isolation thus reducing the possibility of corrosion between flanges made of dissimilar metals Easy Release from Flanges: Does not stick to flanges making removal of gaskets easy and fast Safer Handling (4122-FC): Patent-pending fiber core makes gaskets safer to handle when compared to traditional high temperature gaskets with steel cores
Ideal For:
Marine and Land-based Exhaust Systems Biomass Gasification Process Oil and Gas Production Mineral and Fertilizer Processing Incineration Process Co-generation Systems Turbochargers Equipment Process Drying Equipment
Configurations:
Available in; Sheet Standard Flexseal Spiral Wound Configurations: RW/RWI/SW/SWI Standard Flexseal Spiral Wound Configurations with facing material on the winding faces Kammprofile THERMONIC™ Corrugated metal gasket

Typical Physical Properties

		4122-FC
Temperature	Continuous max.	+1832°F (1000°C)
Pressure1 psig (bar).	4122-FC	500 (34.5)
P x T, max.2 psig x °F (bar x °C)	4122-FC	150,000 (5,100)
Typical Physical Properties for 4122-FC*:
ASTM Test Method F36 Compressibility, range, % Recovery %		35-45 18
ASTM F38 Creep Relaxation, %		25
ASTM F152 Tensile, w/insert, psi (N/mm2)		1,200 (8.3)
ASTM F1315 Density, lbs./ft3 (grams/cm3)		85 (1.36)
ASTM D149 Dielectric Properties, volts/mil.		100
Gasket Factor 'M'		3.0
Gasket Factor 'Y'		10,000

Order Code (Part Number)	Style	Thickness (in.)	Width (in.)	Length (in.)
36468-4063	4122-FC	0.016"	60"	120"
36468-4025	4122-FC	0.125"	40"	40"

NOTES:
1. Based on ANSI RF flanges at our preferred torque. When approaching maximum pressure, continuous operating temperature, minimum temperature or 50% of maximum PxT, consult Garlock Engineering.
2. PxT = psig x °F (bar x °C)
* This is a general guide and should not be the sole means of selecting or rejecting this material. ASTM test results in accordance with ASTM F-104; properties based on 1/16" (1.6mm) gasket thickness unless otherwise mentioned. Values do not constitute specifiacation limits. 36468-4025 4122-FC 0.125" 40" 40"
NOTES:
1. Based on ANSI RF flanges at our preferred torque. When approaching maximum pressure, continuous operating temperature, minimum temperature or 50% of maximum PxT, consult Garlock Engineering.
2. PxT = psig x °F (bar x °C)
* This is a general guide and should not be the sole means of selecting or rejecting this material. ASTM test results in accordance with ASTM F-104; properties based on 1/16" (1.6mm) gasket thickness unless otherwise mentioned. Values do not constitute specifiacation limits.
