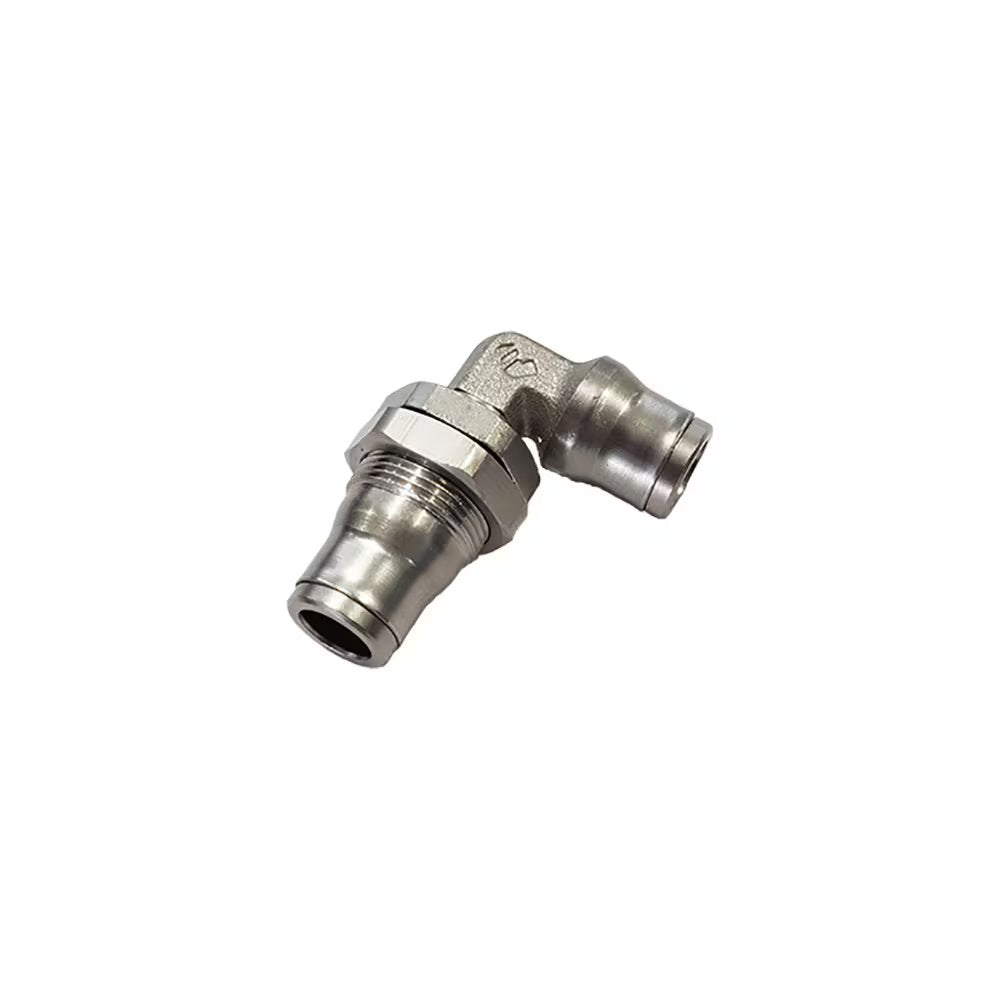

3639 04 00 by Parker | Legris Bulkhead Swivel Connector | 4 mm Tube Size | 14 mm Hex | 35 mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 10

3639 04 00 by Parker | Legris Bulkhead Swivel Connector | 4 mm Tube Size | 14 mm Hex | 35 mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 10

Sale price$312.99

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings :3639 Equal Bulkhead Elbow

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $294.21
15–29 $266.04
30+ $234.74
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3639 Series
Shape:

90° Elbow

Ends Configuration:
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD F1 F2 G H K L ØT (Min) Kg
3639 04 00 4 mm 13 mm 14 mm 10 mm 35 mm 14 mm 18 mm 12.5 mm .023 Kg
3639 06 00 6 mm 16 mm 17 mm 12 mm 40.5 mm 17.5 mm 21.5 mm 15 mm .035 Kg
3639 08 00 8 mm 18 mm 19 mm 15 mm 44 mm 19.5 mm 23.5 mm 17 mm .046 Kg
3639 10 00 10 mm 22 mm 27 mm 17.5 mm 51 mm 24 mm 29 mm 21 mm .080 Kg
3639 12 00 12 mm 24 mm 24 mm 19.5 mm 55 mm 26 mm 31 mm 23 mm .086 Kg
3639 14 00 14 mm 27 mm 27 mm 21.5 mm 59 mm 29.5 mm 34 mm 25 mm .144 Kg

The body swivels for positioning purposes. Maxi pressure = 20 bar
