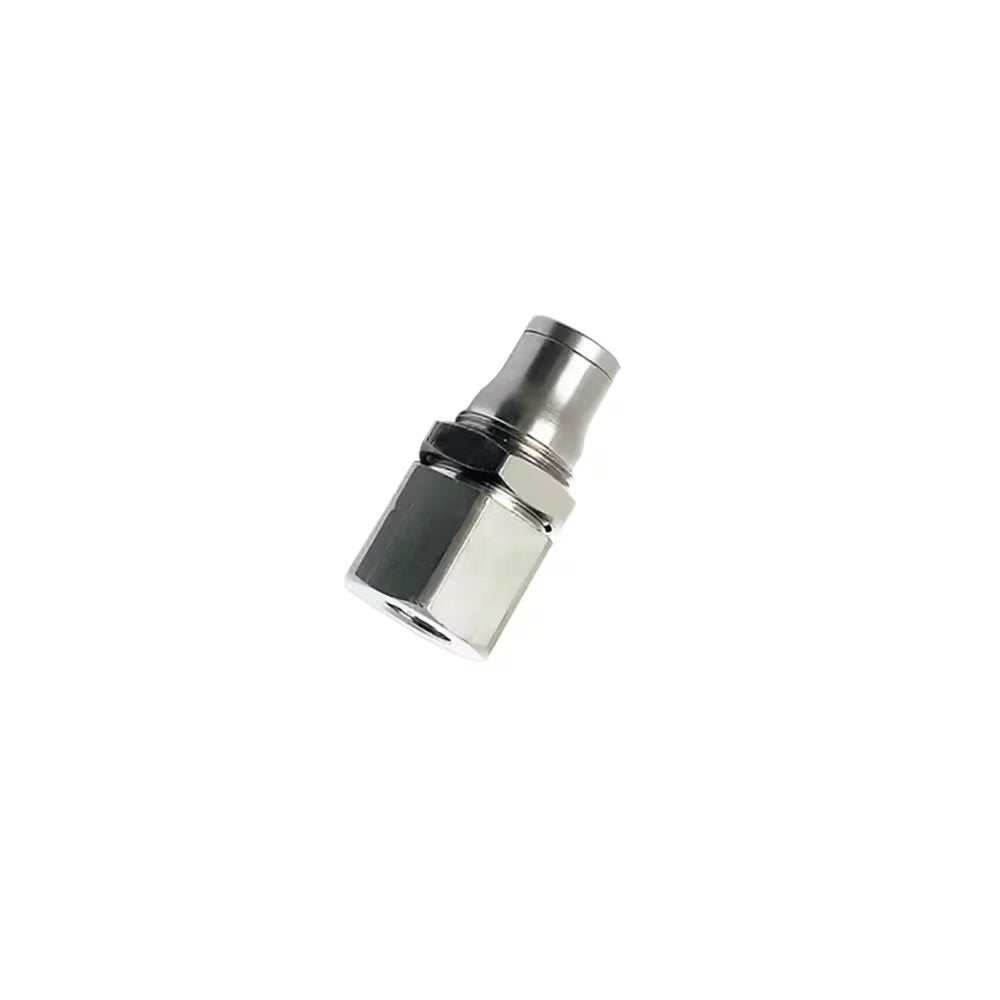

3636 08 13 by Parker | Legris Bulkhead Connector | 8 mm Tube Size x 1/4" Female BSPP Thread | 19 mm Hex | 38 mm Length | Straight | Nickel-Plated Brass | Pack of 10

3636 08 13 by Parker | Legris Bulkhead Connector | 8 mm Tube Size x 1/4" Female BSPP Thread | 19 mm Hex | 38 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$166.87

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings :3636 Bulkhead Connector, Female BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $156.86
20–59 $141.84
60+ $125.15
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3636 Series
Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 1/4in Female BSPP
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C E F1 F2 H H1 K ØT (Min) Kg
3636 04 10 4 mm 1/8" 8.5 mm 14 mm 14 mm 30.5 mm 11 mm 15 mm 13 mm .020 Kg
3636 06 10 6 mm 1/8" 8.5 mm 17 mm 17 mm 33 mm 11 mm 18.5 mm 15 mm .033 Kg
3636 06 13 6 mm 1/4" 11.5 mm 17 mm 17 mm 37 mm 15 mm 18.5 mm 15 mm .033 Kg
3636 08 10 8 mm 1/8" 8.5 mm 19 mm 19 mm 34 mm 10.5 mm 21 mm 17 mm .044 Kg
3636 08 13 8 mm 1/4" 11.5 mm 19 mm 19 mm 38 mm 14.5 mm 21 mm 17 mm .044 Kg
3636 10 17 10 mm 3/8" 12 mm 22 mm 27 mm 42.5 mm 16 mm 24 mm 21 mm .073 Kg
3636 12 17 12 mm 3/8" 12 mm 24 mm 24 mm 43 mm 16 mm 26 mm 23 mm .077 Kg
3636 12 21 12 mm 1/2" 16 mm 27 mm 24 mm 48.5 mm 21.5 mm 29.5 mm 23 mm .133 Kg
