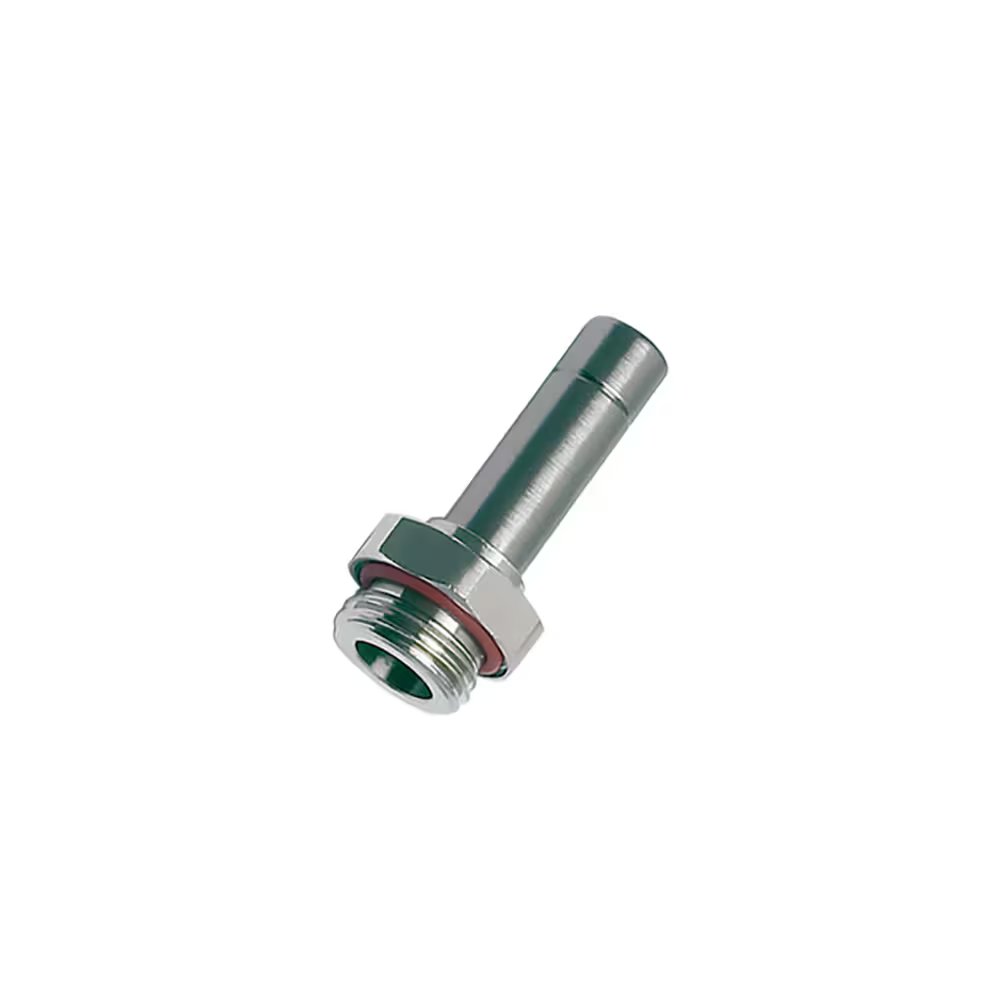

3631 06 10 by Parker | Legris Stud Standpipe | 6 mm Tube Size x 1/8" Male BSPP Thread | 13 mm Hex | 27 mm Length | Straight | Nickel=Plated Brass | Pack of 10

3631 06 10 by Parker | Legris Stud Standpipe | 6 mm Tube Size x 1/8" Male BSPP Thread | 13 mm Hex | 27 mm Length | Straight | Nickel=Plated Brass | Pack of 10

Sale price$133.58

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3631 Stud Standpipe, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $125.57
20–59 $113.54
60+ $100.19
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3631 Series
Shape:

Straight

Ends Configuration:
  • 6mm Push-to-Connect
  • 1/8in Male BSPP
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C E F H H1 Kg
3631 04 19 4 mm M5x0.8 3.5 mm 13 mm 21.5 mm 7 mm .003 Kg
3631 04 10 4 mm 1/8" 4.5 mm 13 mm 20 mm 7 mm .007 Kg
3631 04 13 4 mm 1/4" 5.5 mm 8 mm 20 mm 7.5 mm .011 Kg
3631 06 10 6 mm 1/8" 4.5 mm 13 mm 22.5 mm 6.5 mm .009 Kg
3631 06 13 6 mm 1/4" 5.5 mm 16 mm 22.5 mm 6.5 mm .012 Kg
3631 08 10 8 mm 1/8" 4.5 mm 13 mm 22.5 mm 6.5 mm .010 Kg
3631 08 13 8 mm 1/4" 5.5 mm 16 mm 23 mm 6.5 mm .013 Kg
3631 08 17 8 mm 3/8" 5.5 mm 20 mm 23 mm 7.5 mm .018 Kg
3631 10 13 10 mm 1/4" 5.5 mm 16 mm 28 mm 6.5 mm .015 Kg
3631 10 17 10 mm 3/8" 5.5 mm 20 mm 28 mm 7.5 mm .022 Kg
3631 10 21 10 mm 1/2" 7 mm 24 mm 28 mm 7.5 mm .028 Kg
3631 12 17 12 mm 3/8" 5.5 mm 20 mm 29 mm 7.5 mm .023 Kg
3631 12 21 12 mm 1/2" 7 mm 7 mm 24 mm 29 mm .033 Kg
3631 14 21 14 mm 1/2" 7 mm 24 mm 31 mm 8 mm .033 Kg
