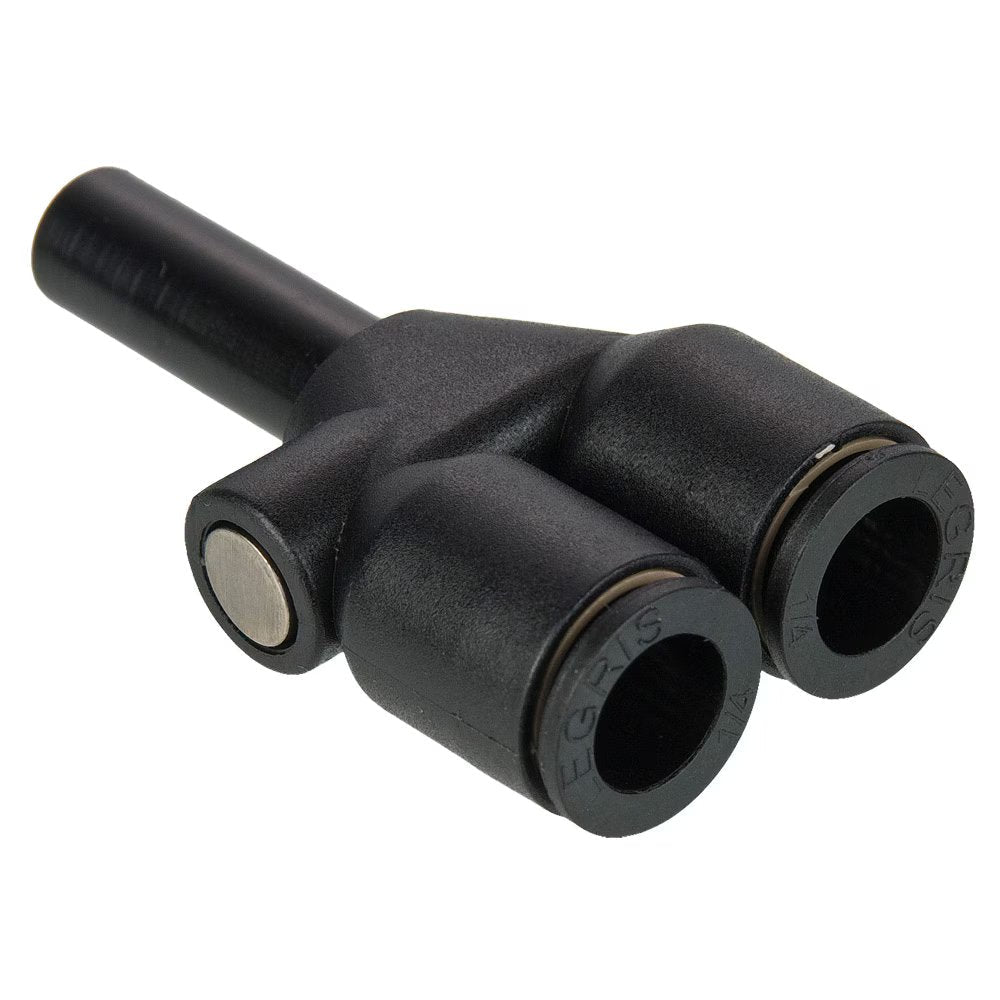

362PLPSP-10M-12M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 10mm to 12mm Tube Size | 60.0mm Length (L) | Y | Glass-Reinforced Nylon | Pack of 10

362PLPSP-10M-12M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 10mm to 12mm Tube Size | 60.0mm Length (L) | Y | Glass-Reinforced Nylon | Pack of 10

Sale price$109.09

by Parker Hannifin
Push-to-Connect Fittings:362PLPSP Plug-In Y

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $102.54
20–59 $92.73
60+ $81.82
Discounts applied in cart/checkout.

Product Data:

Series:
  • 362PLPSP Series
Shape:

Y

Ends Configuration:
  • 10mm Push-to-Connect
  • 10mm Push-to-Connect
  • 12mm Tube Stem
  • Some Ends Match
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 L L1 N
362PLPSP-4M 4 mm 4 mm 34.0 mm 21.5 mm 9.0 mm
362PLPSP-6M 6 mm 6 mm 39.5 mm 25.5 mm 11.0 mm
362PLPSP-8M 8 mm 8 mm 50.5 mm 32.0 mm 14.5 mm
362PLPSP-10M 10 mm 10 mm 57.5 mm 36.0 mm 17.0 mm
362PLPSP-12M 12 mm 12 mm 66.0 mm 41.0 mm 20.0 mm
362PLPSP-4M-6M 4 mm 6 mm 35.5 mm 21.5 mm 9.0 mm
362PLPSP-6M-8M 6 mm 8 mm 44.0 mm 25.5 mm 11.0 mm
362PLPSP-8M-10M 8 mm 10 mm 53.5 mm 32.0 mm 14.5 mm
362PLPSP-10M-12M 10 mm 12 mm 60.0 mm 35.0 mm 17.0 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
