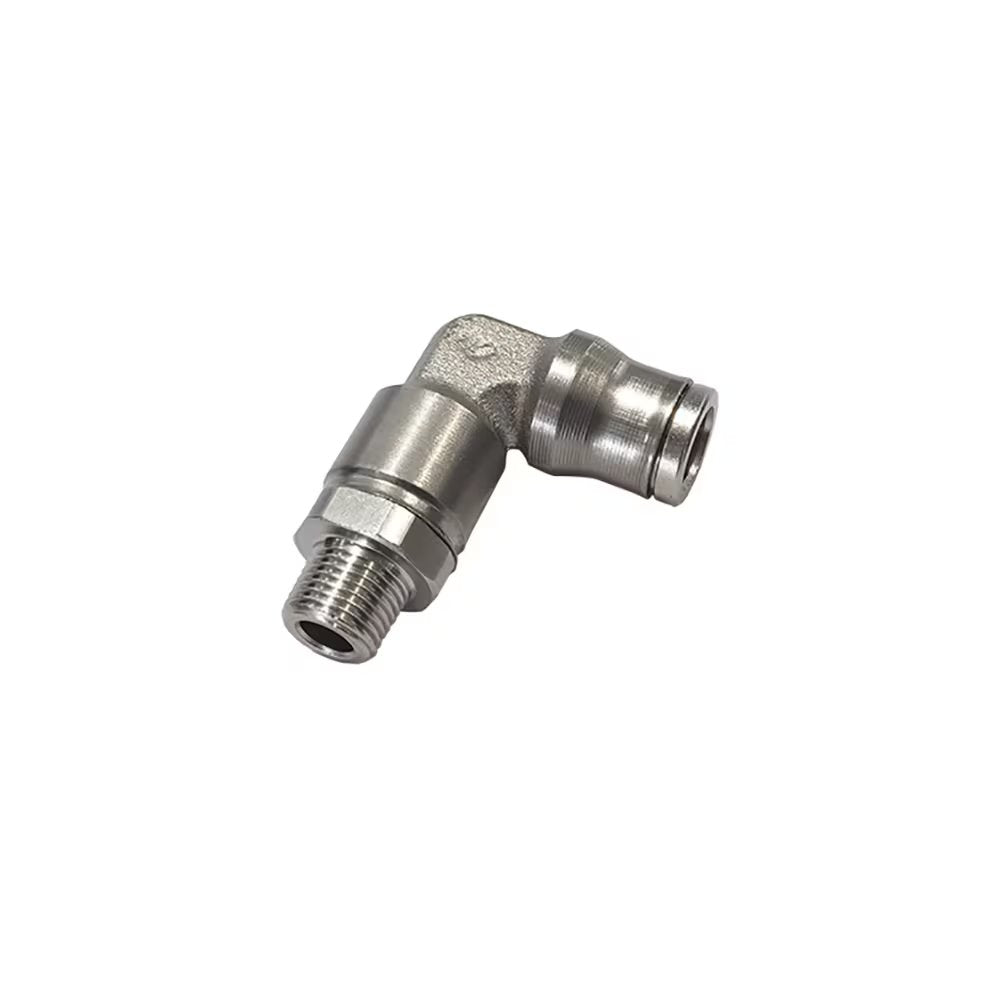

3629 10 13 by Parker | Legris Extended Stud Swivel Fitting | 10 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

3629 10 13 by Parker | Legris Extended Stud Swivel Fitting | 10 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

Sale price$177.02

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3629 Extended Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $166.40
20–59 $150.47
60+ $132.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3629 Series
Shape:

90° Elbow

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/4in Male BSPT
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C F G H J L Kg
3629 04 10 4 mm 1/8" 10 mm 10 mm 24.5 mm 7 mm 18 mm .025 Kg
3629 06 10 6 mm 1/8" 13 mm 12 mm 29.5.5 mm 8 mm 21.5 mm .024 Kg
3629 06 13 6 mm 1/4" 14 mm 12 mm 30.5 mm 8 mm 21.5 mm .031 Kg
3629 08 10 8 mm 1/8" 14 mm 15 mm 32.5 mm 10 mm 23.5 mm .031 Kg
3629 08 13 8 mm 1/4" 14 mm 15 mm 34 mm 10 mm 23.5 mm .037 Kg
3629 10 13 10 mm 1/4" 18 mm 17.5 mm 39 mm 12 mm 29 mm .054 Kg

The body swivels for positioning purposes.
