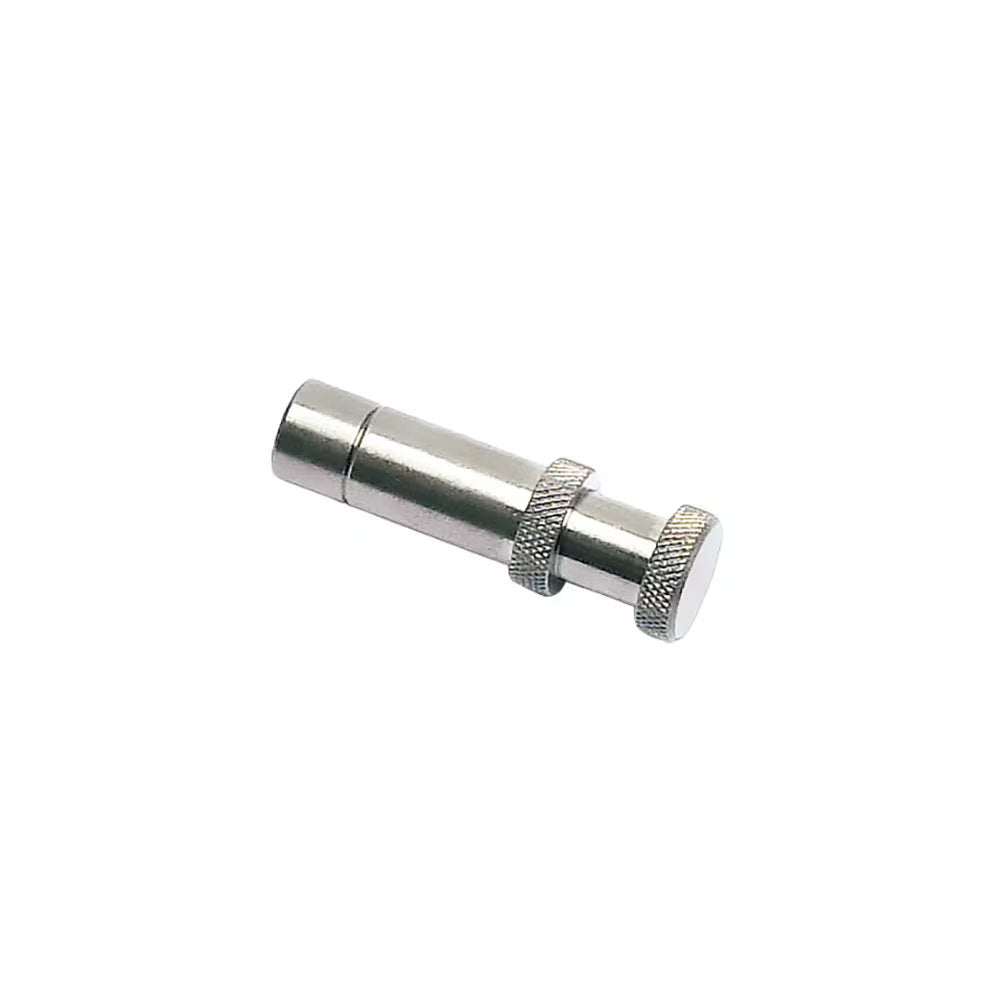

3626 08 00 by Parker | Legris Blanking Plug | 8 mm Tube Size | 33 mm Length | Nickel-Plated Brass | Pack of 10

3626 08 00 by Parker | Legris Blanking Plug | 8 mm Tube Size | 33 mm Length | Nickel-Plated Brass | Pack of 10

Sale price$48.25

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD G L L1 L2 Kg
3626 04 00 4 mm 6 mm 25.5 mm 17.5 mm 11.5 mm .004 Kg
3626 06 00 6 mm 8 mm 30.5 mm 19.5 mm 13.5 mm .009 Kg
3626 08 00 8 mm 10 mm 33 mm 20 mm 16 mm .009 Kg
3626 10 00 10 mm 12 mm 40 mm 25 mm 18 mm .015 Kg
3626 12 00 12 mm 14 mm 43 mm 26 mm 20 mm .021 Kg
3626 14 00 14 mm 16 mm 47 mm 28 mm 22.5 mm .029 Kg

Additional Product Data:

Series:
  • 3626 Series
Shape:

No Orientation

Ends Configuration:
  • 8mm Tube Stem
