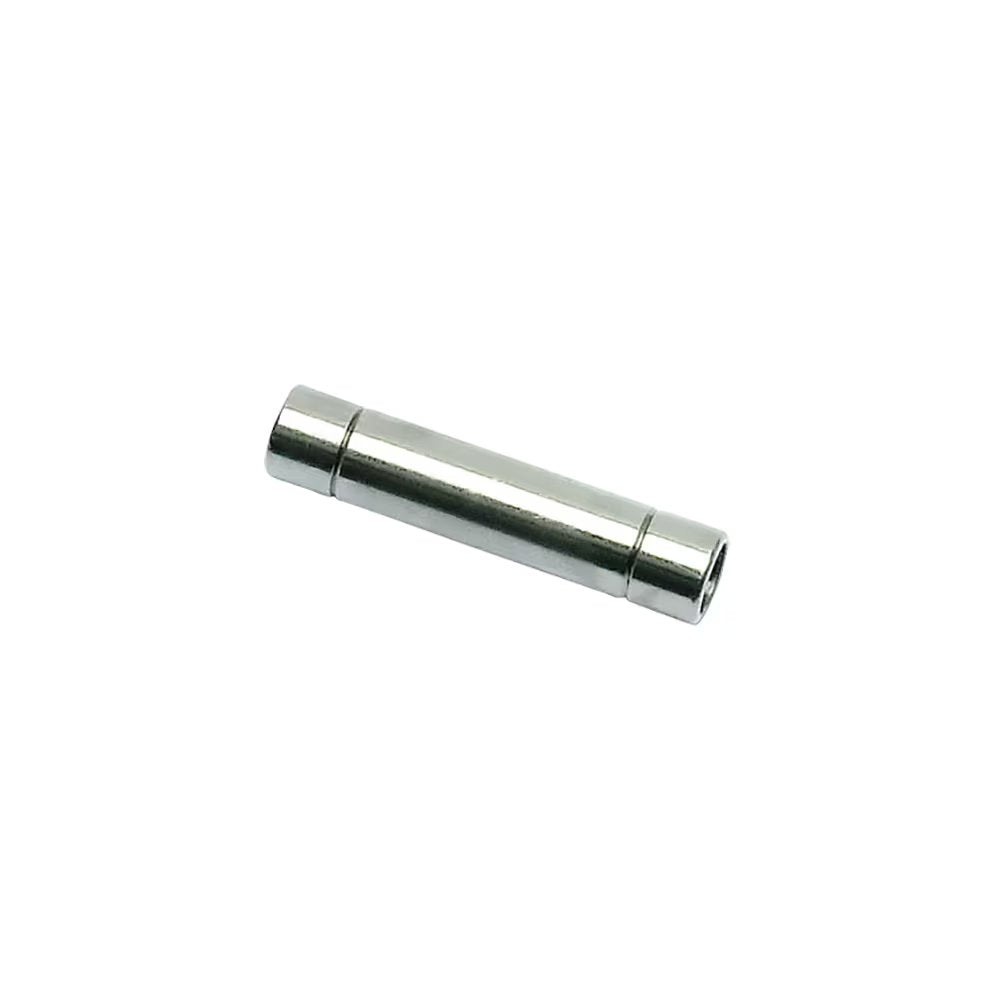

3620 14 00 by Parker | Legris Connector | 14mm Male Stem | 53mm Length | Straight | Nickel-Plated Brass | Pack of 10

3620 14 00 by Parker | Legris Connector | 14mm Male Stem | 53mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$74.58

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Accessories :3620 Male Stem Connector

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $70.11
40–79 $63.39
80+ $55.94
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3620 Series
Shape:

Straight

Ends Configuration:
  • 14mm Tube Stem
  • 14mm Tube Stem
  • Some Ends Match
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C E Kg
3620 04 00 4 mm 31 mm 14 mm .002 Kg
3620 06 00 6 mm 36.5 mm 17 mm .005 Kg
3620 08 00 8 mm 37.5 mm 17.5 mm .005 Kg
3620 10 00 10 mm 47.5 mm 22.5 mm .011 Kg
3620 12 00 12 mm 49.5 mm 23.5 mm .015 Kg
3620 14 00 14 mm 53 mm 25 mm .016 Kg
