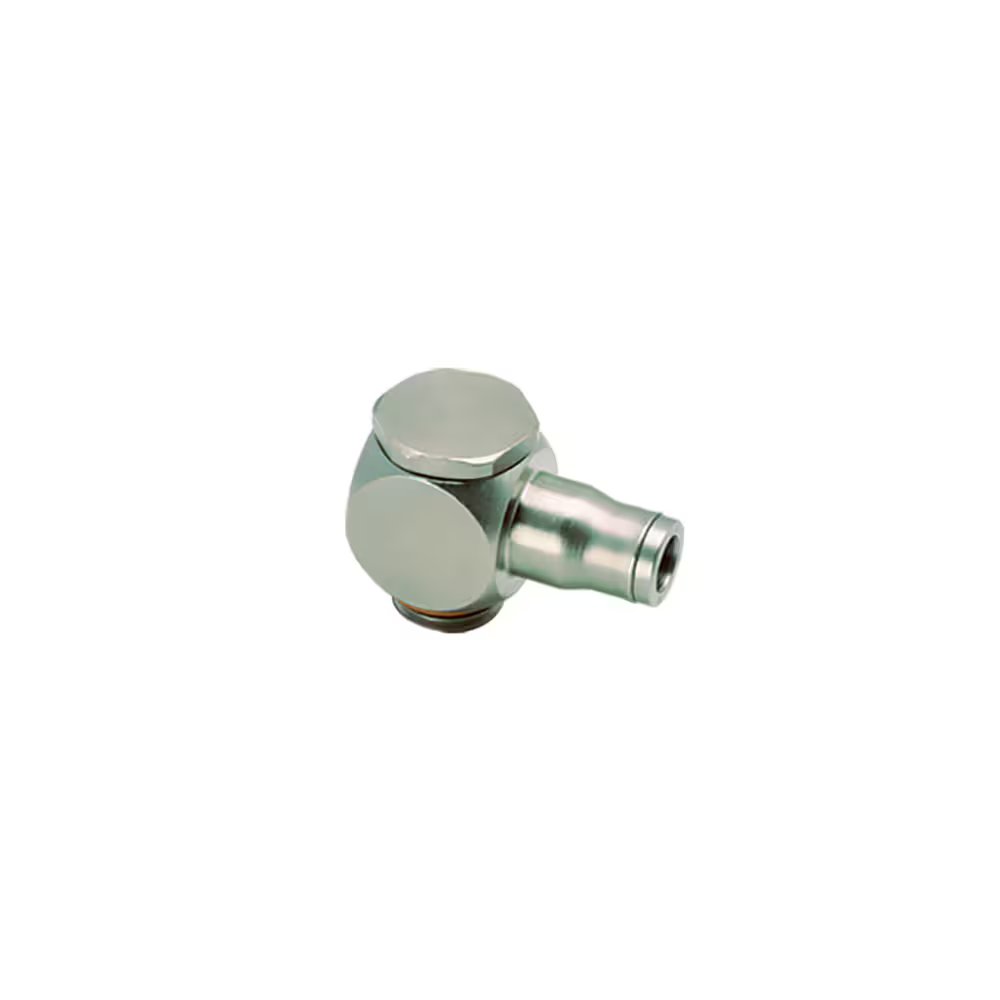

3618 04 10 by Parker | Legris Stud Fitting | 4mm Tube Size x 1/8" Male BSPP Thread | 29.5mm Length | Banjo | Nickel-Plated Brass | Pack of 10

3618 04 10 by Parker | Legris Stud Fitting | 4mm Tube Size x 1/8" Male BSPP Thread | 29.5mm Length | Banjo | Nickel-Plated Brass | Pack of 10

Sale price$169.68

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3618 Single Banjo, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $159.50
20–59 $144.23
60+ $127.26
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3618 Series
Shape:

Banjo

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/8in Male BSPP
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C F H H1 J L1 L2 Kg
3618 04 19 4 mm M5x0.8 8 mm 13 mm 6 mm 10 mm 6 mm 18.5 mm .011 Kg
3618 04 10 4 mm 1/8" 13 mm 16.5 mm 7 mm 15 mm 7.5 mm 22 mm .029 Kg
3618 06 19 6 mm M5x0.8 8 mm 13 mm 6 mm 10 mm 5 mm 22.5 mm .015 Kg
3618 06 10 6 mm 1/8" 13 mm 16.5 mm 7 mm 15 mm 7.5 mm 24 mm .031 Kg
3618 06 13 6 mm 1/4" 17 mm 21 mm 9 mm 18 mm 9 mm 24 mm .049 Kg
3618 08 10 8 mm 1/8" 13 mm 16.5 mm 7 mm 15 mm 7.5 mm 25.5 mm .033 Kg
3618 08 13 8 mm 1/4" 17 mm 21 mm 9 mm 18 mm 9 mm 26.5 mm .051 Kg
3618 10 17 10 mm 3/8" 20 mm 24.5 mm 11 mm 21.5 mm 11 mm 33 mm .105 Kg

Maximum temperature: +80°C
