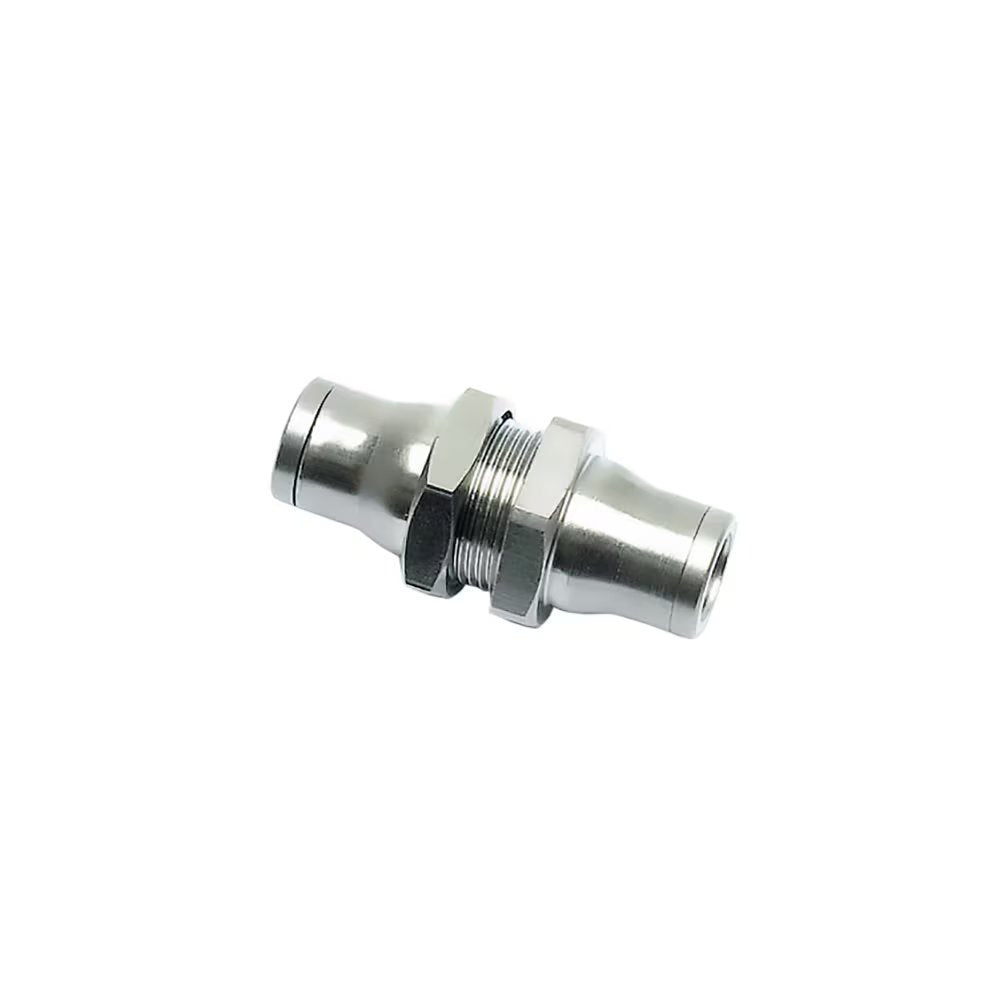

3616 08 00 by Parker | Legris Bulkhead Connector | 8 mm Tube Size | 43 mm Length | Straight | Nickel-Plated Brass | Pack of 10

3616 08 00 by Parker | Legris Bulkhead Connector | 8 mm Tube Size | 43 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$166.84

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings :3616 Equal Bulkhead Connector

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $156.83
20–59 $141.81
60+ $125.13
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3616 Series
Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD F1 F2 K L1 L2 ØT (Min) Kg
3616 04 00 4 mm 13 mm 14 mm 14 mm 14 mm 20 mm 12.5 mm .018 Kg
3616 06 00 6 mm 16 mm 17 mm 17.5 mm 17 mm 22 mm 15 mm .028 Kg
3616 08 00 8 mm 18 mm 19 mm 19.5 mm 18.5 mm 23.5 mm 17 mm .036 Kg
3616 10 00 10 mm 22 mm 27 mm 24 mm 21.5 mm 26.5 mm 21 mm .063 Kg
3616 12 00 12 mm 24 mm 24 mm 26 mm 23 mm 27 mm 23 mm .062 Kg
3616 14 00 14 mm 27 mm 27 mm 29.5 mm 25.5 mm 29.5 mm 25 mm .079 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
