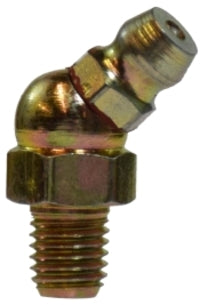

36148 by Midland | Grease Fitting | Ball Check | 1/4"-28 Male Taper | 45° Long Elbow | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Grease Fitting - Long 45° Ball Check
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.30 |
| 40–79 | $2.08 |
| 80+ | $1.84 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| SAE Rating: | Meets SAE #J-534C | Conformance: | Exceeds 12HR Salt |
|---|---|---|---|
| Pressure: | Max. 8000 PSI |
| Crossover Series: | ||
|---|---|---|
| #636 | 1630 | 2445 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Size | A | B | Hex | Approx. Weight (Lbs.) |
| 36148 (36-148) |
1/4"-28 Taper Thread | 0.94" | 0.30" | 0.375" | 0.02 |
Dimension Data can change without notice.
