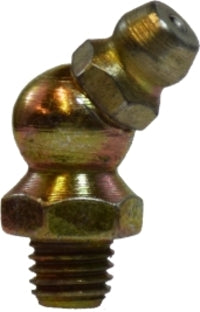

36146 by Midland | Grease Fitting | Short Ball Check | 1/4"-28 Male Taper | 45° Elbow | Brass
Minimum Order Quantity: 10 Units
Midland Industries
Brass Fitting - Grease Fitting - Short 45° Ball Check
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.60 |
| 40–79 | $1.45 |
| 80+ | $1.28 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| SAE Rating: | Meets SAE #J-534C | Conformance: | Exceeds 12HR Salt |
|---|---|---|---|
| Pressure: | Max. 8000 PSI |
| Crossover Series: | ||||||
|---|---|---|---|---|---|---|
| #637 | 1637 | 2445 | 1665 | 2465 | 3010 | 5210 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Material | Size | A | B | Hex | Approx. Weight (Lbs.) |
| 36146 (36-146) |
Brass | 1/4"-28 Taper Thread | 0.82" | 0.20" | 0.375" | 0.02 |
| 36146SS (36-146SS) |
303 Stainless Steel | 1/4"-28 Taper Thread | 0.81" | 0.20" | 0.375" | 0.02 |
Dimension Data can change without notice.
