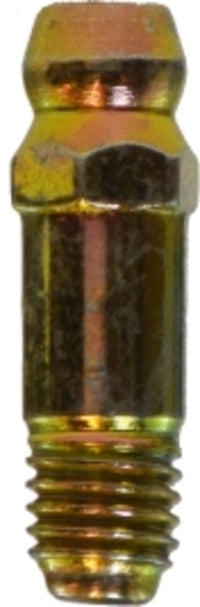

36144 by Midland | Grease Fitting | Extra Long Ball Check | 1/4"-28 Male Taper | Steel
Minimum Order Quantity: 10 Units
Midland Industries
Brass Fitting - Grease Fitting - Extra Long Ball Check - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.49 |
| 40–79 | $1.34 |
| 80+ | $1.19 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| SAE Rating: | Meets SAE #J-534C | Conformance: | Exceeds 12HR Salt |
|---|---|---|---|
| Pressure: | Max. 8000 PSI |
| Crossover Series: | |||
|---|---|---|---|
| #680 | 1680 | 2400 | 5014 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Size | A | B | Hex | Approx. Weight (Lbs.) |
| 36144 (36-144) |
1/4"-28 Taper Thread | 0.92" | 0.60" | 0.312" | 0.02 |
Dimension Data can change without notice.
