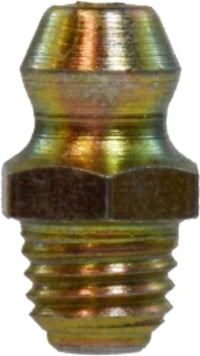

36141 (36-141) by Midland | Grease Fitting | Short Ball Check | 1/4"-28 Male NPTF Thread Forming | Straight | Steel
Minimum Order Quantity: 10 Units
Midland Industries
Brass Fitting - Grease Fitting - Short Ball Check
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.12 |
| 40–79 | $1.01 |
| 80+ | $0.89 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
| SAE Rating: | Meets SAE #J-534C | Conformance: | Exceeds 12HR Salt |
|---|---|---|---|
| Pressure: | Max. 8000 PSI |
| Crossover Series: | ||||
|---|---|---|---|---|
| #641 | 1641 | 2400 | 3038 | 5010 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Material | Size | A | B | Hex | Approx. Weight (Lbs.) |
| 36140 (36-140) |
Steel | 1/4"-28 NPTF | 0.54" | 0.18" | 0.31" | 0.01 |
| 36140SS (36-140SS) |
303 Stainless Steel | 1/4"-28 NPTF | 0.54" | 0.18" | 0.31" | 0.01 |
| 36141 (36-141) |
Steel, Thread Forming | 1/4"-28 NPTF | 0.55" | 0.10" | 0.31" | 0.01 |
Dimension Data can change without notice.
