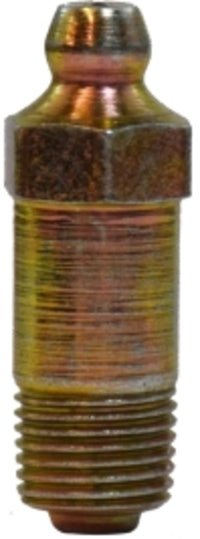

36112 by Midland | Grease Fitting | Ball Check (Long) | 1/8"-27 Male NPTF | 1.25" Length | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Grease Fitting - Ball Check (Long) - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.84 |
| 40–79 | $3.47 |
| 80+ | $3.06 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| SAE Rating: | Meets SAE #J-534C | Conformance: | Exceeds 12HR Salt |
|---|---|---|---|
| Pressure: | Max. 8000 PSI |
| Crossover Series: | ||||
|---|---|---|---|---|
| #607 | 1607 | 2800 | 1669 | 5003 |
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | A | B | Hex | Approx. Weight (Lbs.) |
||||||||||
| 36112 (36-112) |
1/8"-27 NPTF | 1.25" | 0.22" | 0.437" | 0.02 | ||||||||||
| 36113 (36-113) |
1/8"-27 NPTF | 1.75" | 1.26" | 0.437" | 0.02 | ||||||||||
Dimension Data can change without notice.
