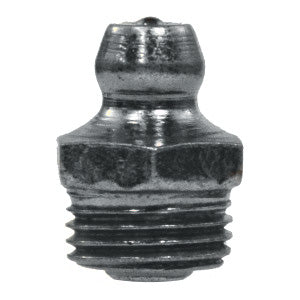

36110SS by Midland | Grease Fitting | Ball Check | 1/8"-27 Male NPTF | 303 Stainless Steel
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Grease Fitting - Ball Check - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $4.37 |
| 40–79 | $3.95 |
| 80+ | $3.49 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| SAE Rating: | Meets SAE #J-534C | Conformance: | Exceeds 12HR Salt |
|---|---|---|---|
| Pressure: | Max. 8000 PSI |
| Crossover Series: | ||||
|---|---|---|---|---|
| #610 | 1610 | 2800 | 1720 | 5000 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Description | Size | A | B | Hex | Approx. Weight (Lbs.) |
| 38110 (38-110) |
Steel | 1/8"-27 NPTF | 0.66" | 0.28" | 0.437" | 0.01 |
| 38110SS (38-110SS) |
303 Stainless Steel | 1/8"-27 NPTF | 0.68" | 0.29" | 0.437" | 0.01 |
| 38111 (38-111) |
Steel (Thread Forming) | 1/8"-27 NPTF | 0.62" | 0.23" | 0.437" | 0.01 |
Dimension Data can change without notice.
