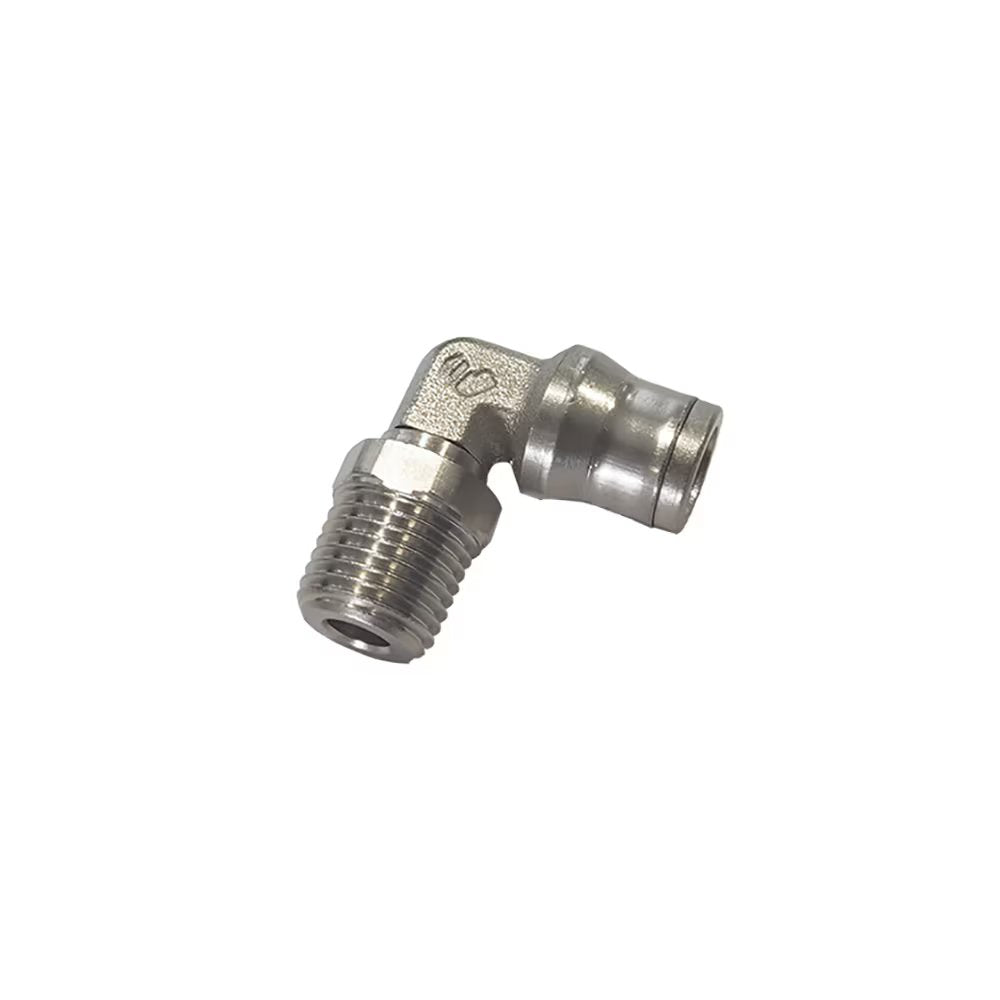

3609 04 13 by Parker | Legris Stud Swivel Fitting | 4 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

3609 04 13 by Parker | Legris Stud Swivel Fitting | 4 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

Sale price$124.68

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3609 Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $117.20
20–59 $105.98
60+ $93.51
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3609 Series
Shape:

90° Elbow

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/4in Male BSPT
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C F G H J L Kg
3609 04 10 4 mm 1/8" 13 mm 10 mm 15 mm 7 mm 18 mm .014 Kg
3609 04 13 4 mm 1/4" 14 mm 10 mm 17 mm 7 mm 18 mm .020 Kg
3609 06 10 6 mm 1/8" 13 mm 12 mm 17.5 mm 8 mm 21.5 mm .018 Kg
3609 06 13 6 mm 1/4" 14 mm 12 mm 19 mm 8 mm 21.5 mm .025 Kg
3609 08 10 8 mm 1/8" 13 mm 15 mm 19.5 mm 10 mm 23.5 mm .022 Kg
3609 08 13 8 mm 1/4" 14 mm 15 mm 21 mm 10 mm 23.5 mm .029 Kg
3609 08 17 8 mm 3/8" 17 mm 15 mm 21 mm 10 mm 23.5 mm .035 Kg
3609 10 13 10 mm 1/4" 15 mm 17.5 mm 23.5 mm 12 mm 29 mm .037 Kg
3609 10 17 10 mm 3/8" 17 mm 17.5 mm 25.5 mm 12 mm 29 mm .043 Kg
3609 12 13 12 mm 1/4" 15 mm 19.5 mm 26 mm 15 mm 31 mm .049 Kg
3609 12 17 12 mm 3/8" 17 mm 19.5 mm 28.5 mm 15 mm 31 mm .055 Kg
3609 12 21 12 mm 1/2" 21 mm 19.5 mm 28.5 mm 15 mm 31 mm .072 Kg
3609 14 17 14 mm 3/8" 19 mm 21.5 mm 29 mm 16 mm 34 mm .063 Kg
3609 14 21 14 mm 1/2" 22 mm 21.5 mm 30 mm 16 mm 34 mm .072 Kg

The body swivels for positioning purposes. Maxi pressure = 20 bar
