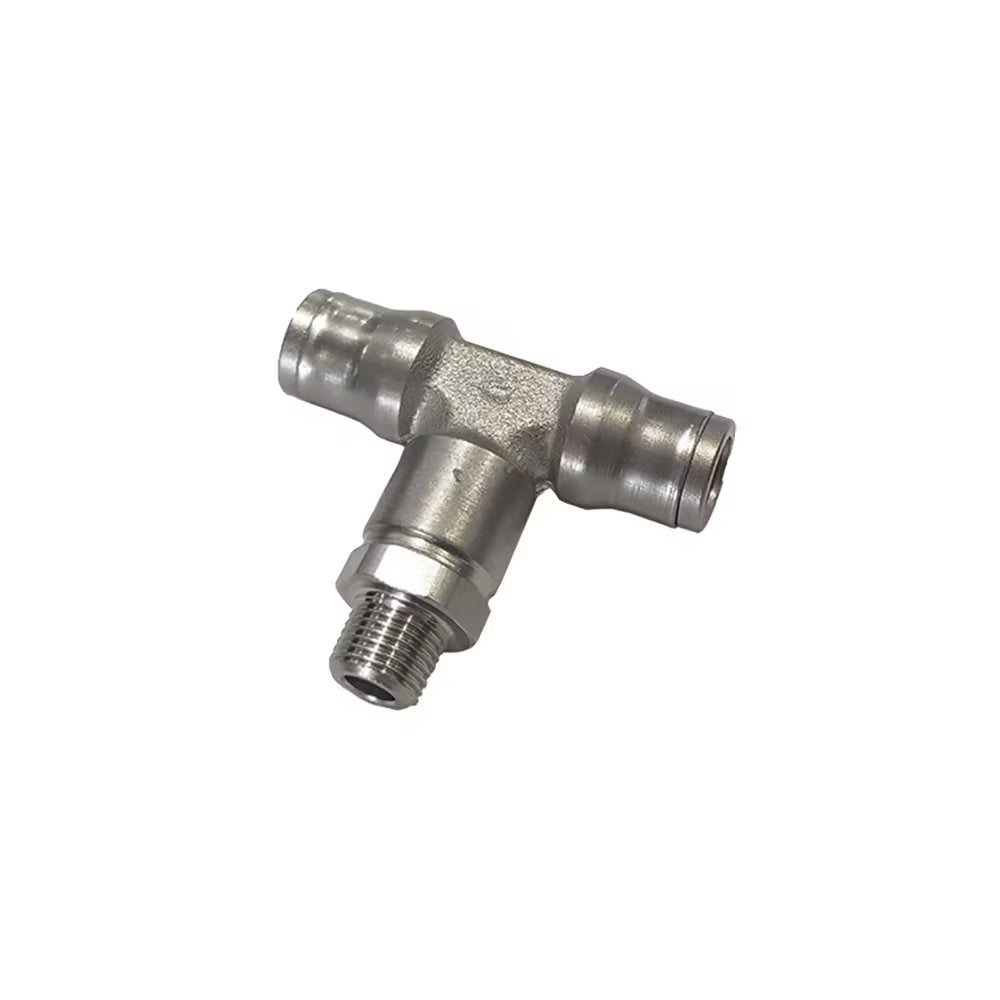

3608 06 10 by Parker | Legris Stud Swivel Fitting | 6 mm Tube Size x 1/8" Male BSPT Thread | 13 mm Hex | 43 mm Length | Tee | Nickel-Plated Brass | Pack of 10

3608 06 10 by Parker | Legris Stud Swivel Fitting | 6 mm Tube Size x 1/8" Male BSPT Thread | 13 mm Hex | 43 mm Length | Tee | Nickel-Plated Brass | Pack of 10

Sale price$145.65

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fitting:3608 Stud Branch Tee, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $136.91
20–59 $123.80
60+ $109.24
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3608 Series
Shape:

Tee

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • 1/8in Male BSPT
  • Some Ends Match
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C F G H J L/2 Kg
3608 04 10 4 mm 1/8" 10 mm 10 mm 24.5 mm 7 mm 18 mm .020 Kg
3608 06 10 6 mm 1/8" 13 mm 12 mm 29.5 mm 8 mm 21.5 mm .031 Kg
3608 06 13 6 mm 1/4" 14 mm 12 mm 30.5 mm 8 mm 21.5 mm .038 Kg
3608 08 10 8 mm 1/8" 14 mm 15 mm 32.5 mm 10 mm 23.5 mm .040 Kg
3608 08 13 8 mm 1/4" 14 mm 15 mm 34 mm 10 mm 23.5 mm .047 Kg
3608 10 13 10 mm 1/4" 18 mm 17.5 mm 39 mm 12 mm 29 mm .067 Kg
3608 10 17 10 mm 3/8" 18 mm 17.5 mm 41 mm 12 mm 29 mm .070 Kg
3608 12 17 12 mm 3/8" 20 mm 19.5 mm 46.5 mm 15 mm 31 mm .094 Kg
3608 14 21 14 mm 1/2" 22 mm 21.5 mm 50.5 mm 16 mm 34 mm .125 Kg

The body swivels for positioning purposes.
