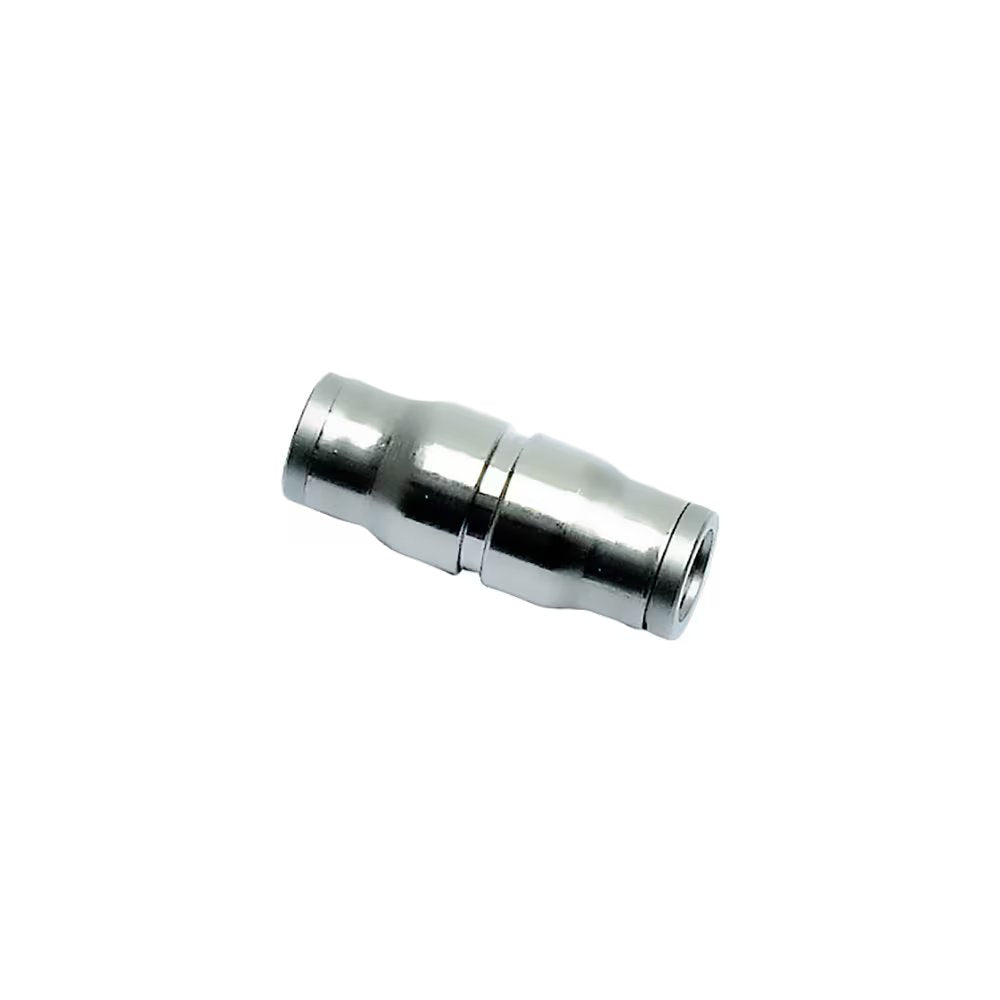

3606 08 00 by Parker | Legris Tube-to-Tube Fitting | 8 mm Tube Size | 37.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

3606 08 00 by Parker | Legris Tube-to-Tube Fitting | 8 mm Tube Size | 37.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$139.37

by Parker Hannifin
LF 3000® Push-In Fittings / Tube-to-Tube Fittings :3606 Equal Tube-to-Tube Connector

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $131.01
20–59 $118.46
60+ $104.53
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3606 Series
Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD G L Kg
3606 04 00 4 mm 10 mm 30.5 mm .010 Kg
3606 06 00 6 mm 12 mm 36.5 mm .016 Kg
3606 08 00 8 mm 15 mm 37.5 mm .021 Kg
3606 10 00 10 mm 17.5 mm 47.5 mm .034 Kg
3606 12 00 12 mm 19.5 mm 50 mm .042 Kg
3606 14 00 14 mm 21.5 mm 52.5 mm .050 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
